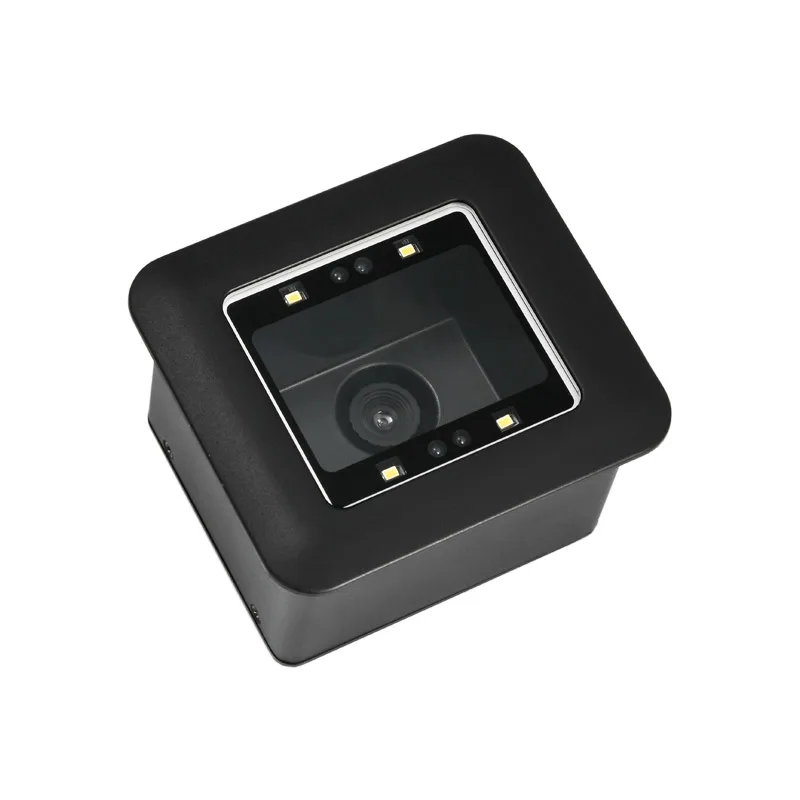

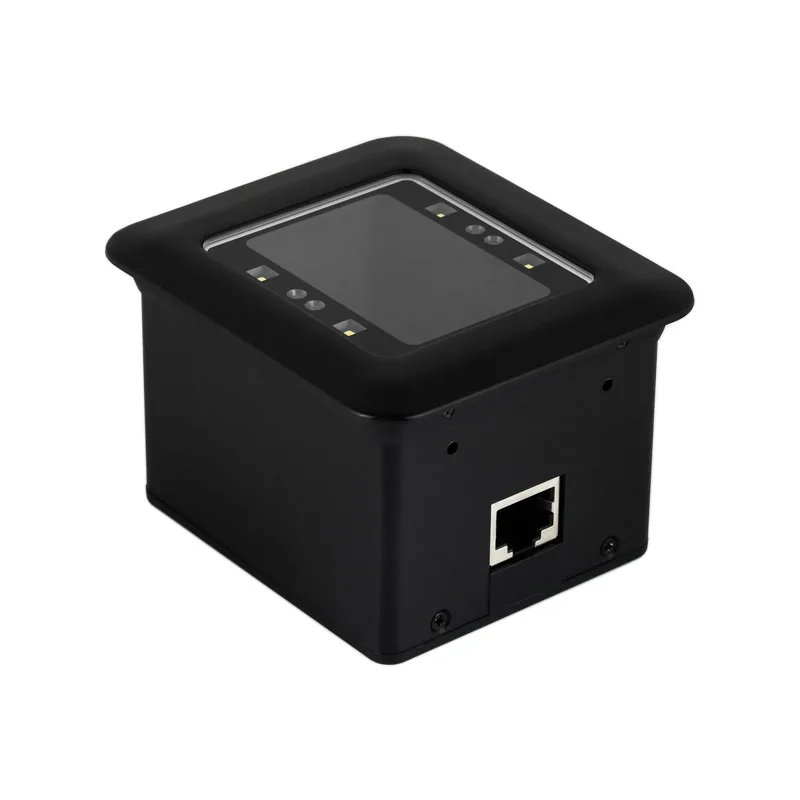

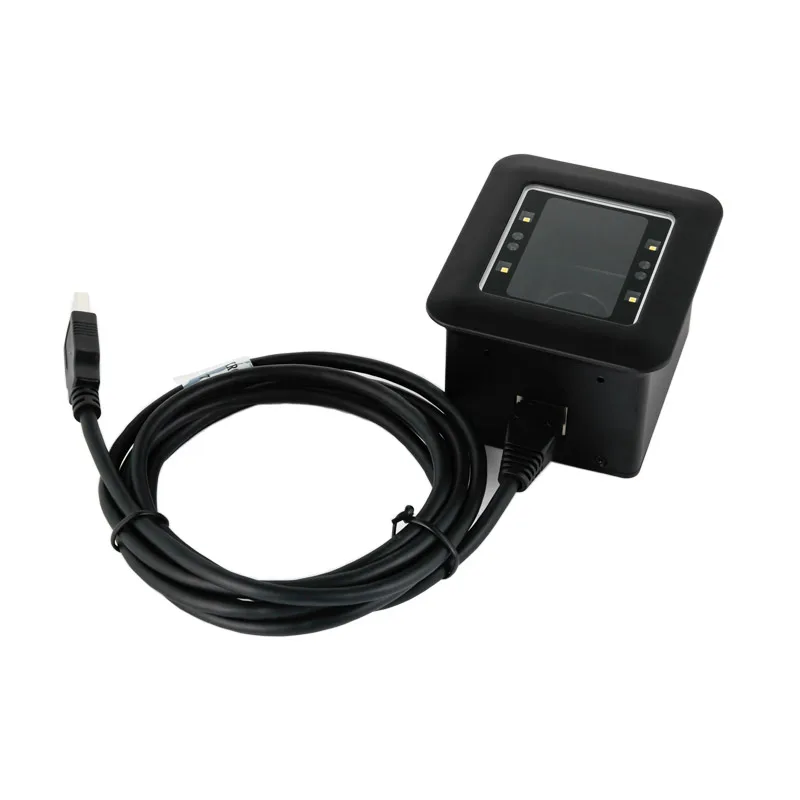

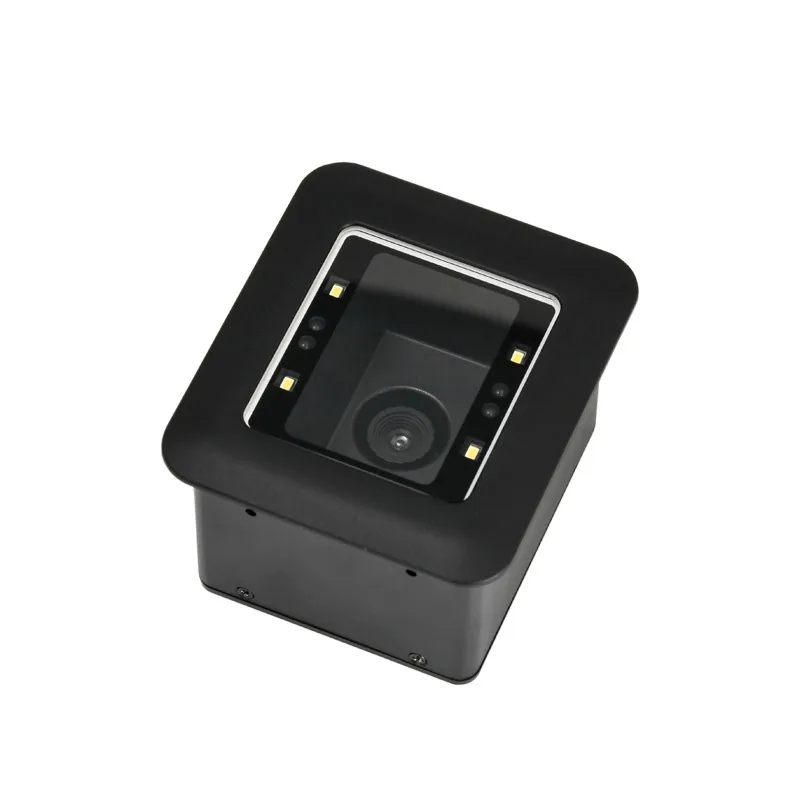

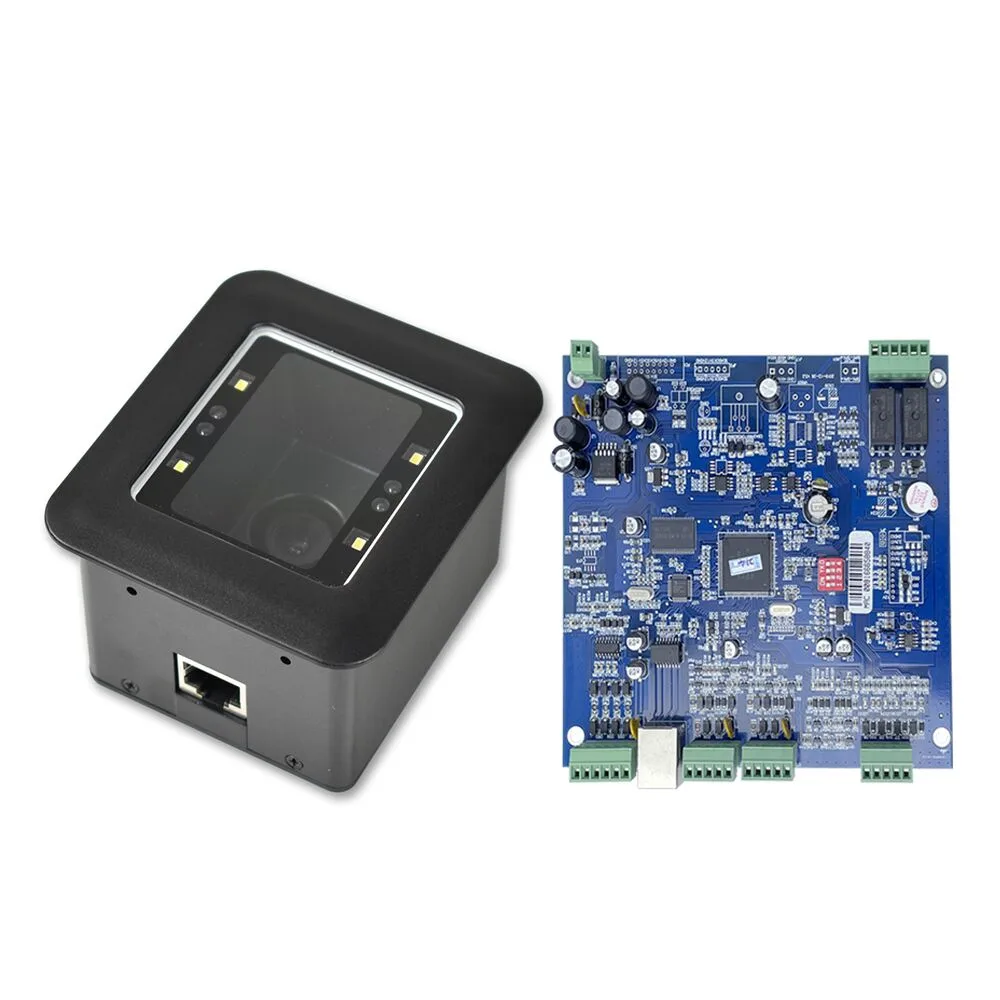

RD4500R Fixed Mount 2D Seanner

Introduction

The 4500R series fixed mount barcode scanner is a versatile and efficient solution for digital and printed barcode data capture. Ideal for applications such as electronic tickets/coupons, mobile marketing, and office automation, this scanner excels in reading 1D and 2D barcodes from both mobile phones and paper. The 4500R series ensures swift scanning with its impressive ability to accurately read barcodes on various mobile phone LCD screens, regardless of contrast ratios, colors, and reflectances. With its user-friendly design, the scanner can be easily configured by scanning the programming barcodes provided in the user guide, making it a convenient choice for enhancing productivity in various industries.

Features

• Excellently Reading 1D&2D code on Phone Screen;
• Effortlessly reading code even in dim environment;
• Specially designed for kiosk, turnstiles with easy installation

Specification

Processor	IOTC 0370 CHIP
Interface	RS-232 (9.6~115.2Kbps)
	USB 1.1（HID-KBW, HID-POS）
Image Sensor	752×480 CMOS
Symbologies	2D: PDF417, Data Matrix, QR Code 1D:  EAN-13,  EAN-8,  UPC-A,  UPC-E,  ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited,   RSS-14),   Code   39,   Code   11, MSI-Plessey, Plessey
Scan Mode	Sense mode
Resolution	10 mil
Light Source	White LED
Scan Window	38.3mm*60.4mm
PCS	≥30%
FOV	Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
Ambient Light	0 ~ 100,000 LUX
Power Consumption	1.75W (max.)
Power Adapter	Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Notification	Beep
Dimensions	82 mm(L) X 72mm (W) X 52mm(H)
Weight	300g
Operating Temperature	-10℃ to + 50℃
Storage Temperature	-20℃ to + 60℃
Humidity	5% – 95%（non-condensing）
Certification	FCC Part15 Class B, CE EMC Class B

Videos

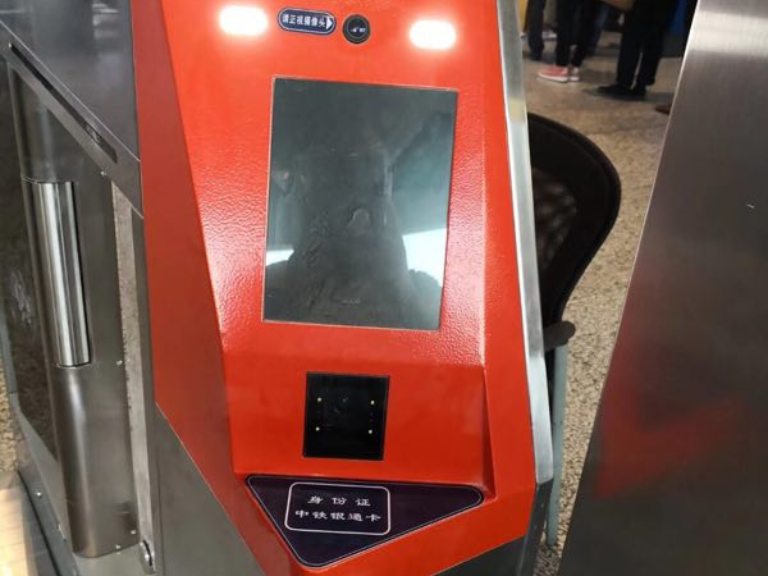

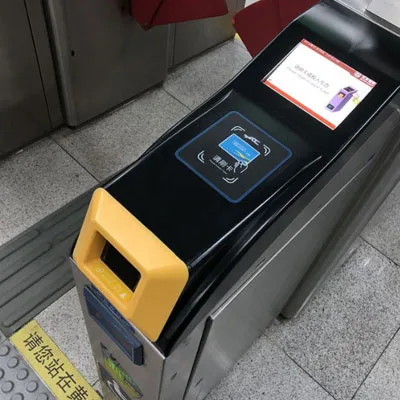

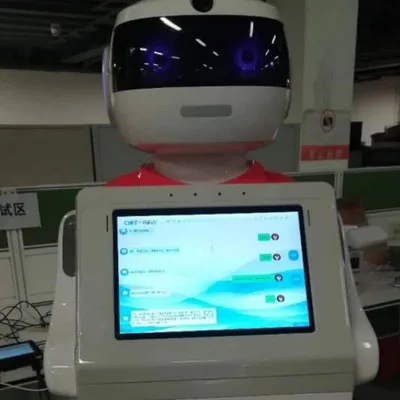

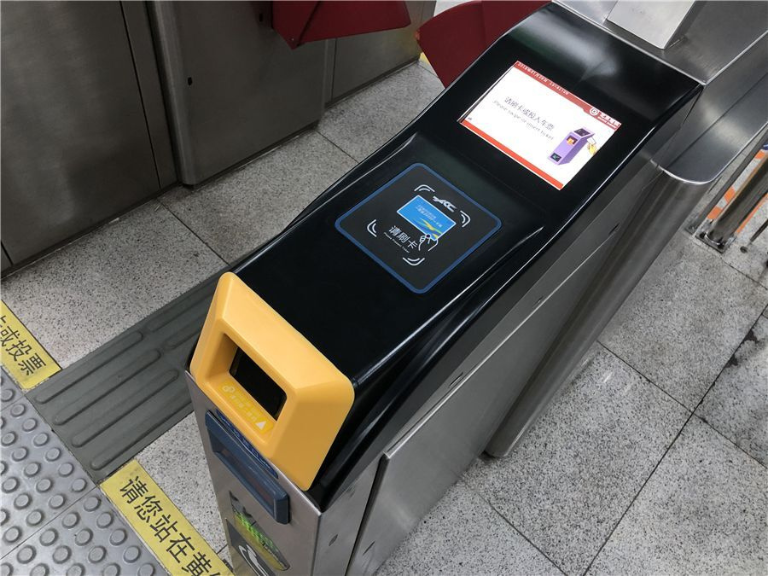

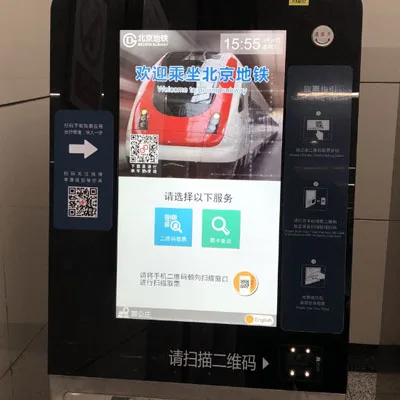

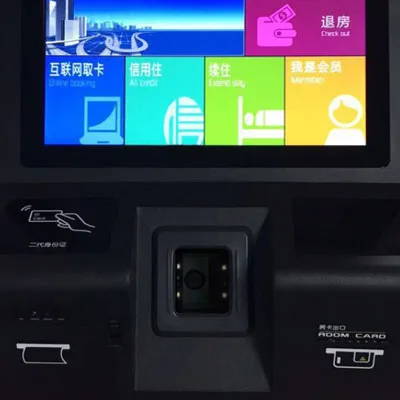

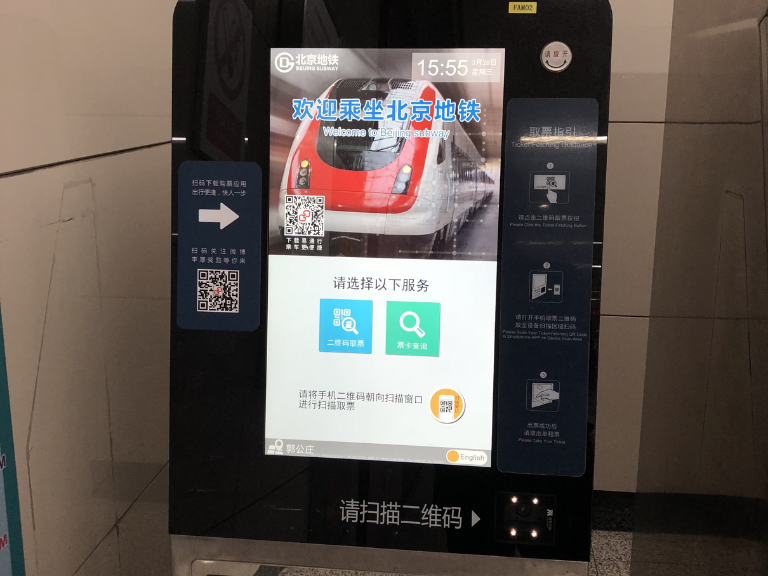

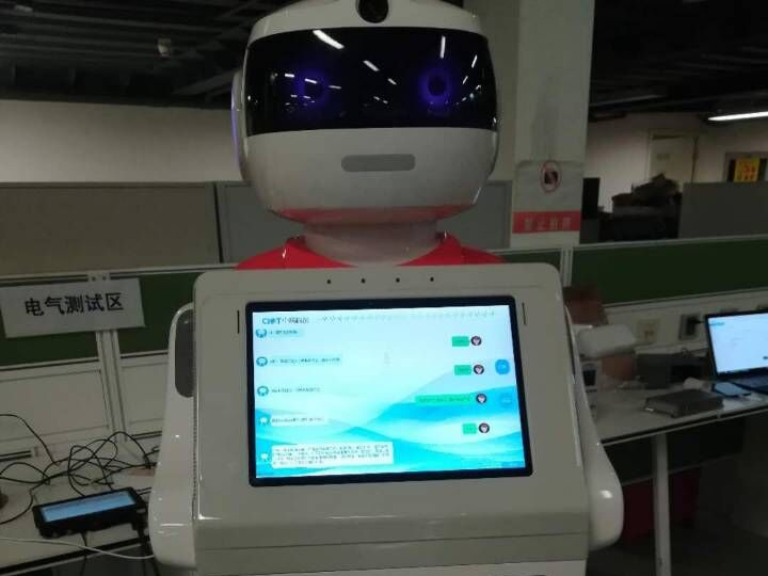

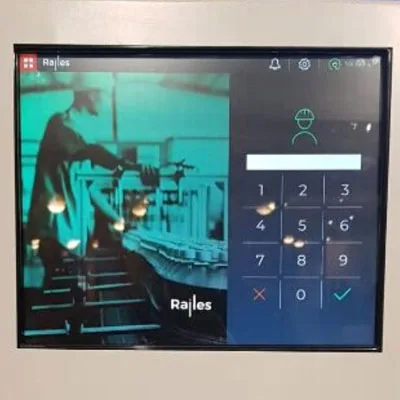

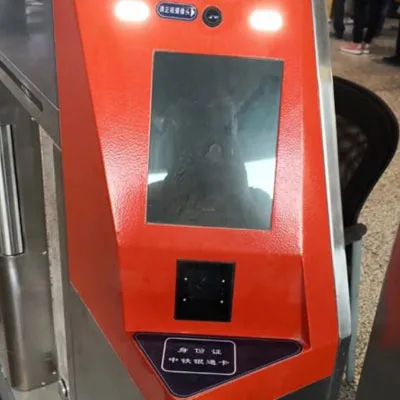

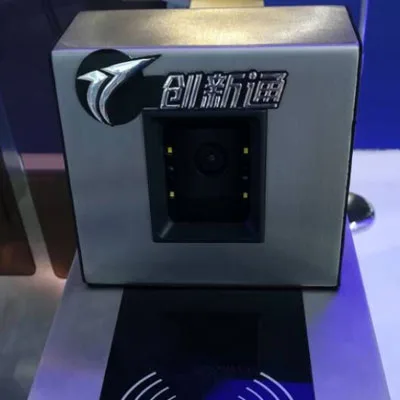

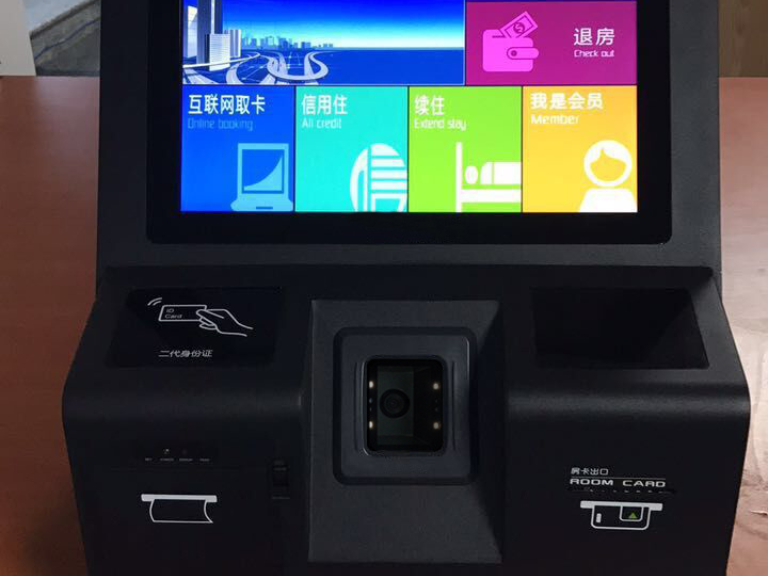

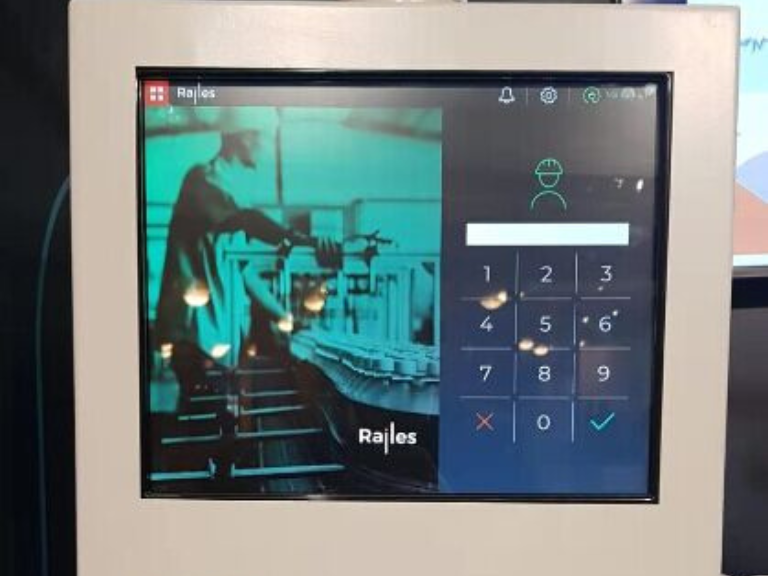

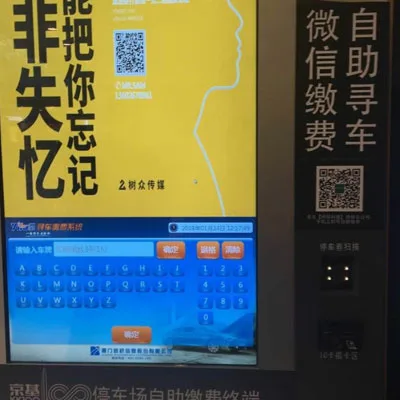

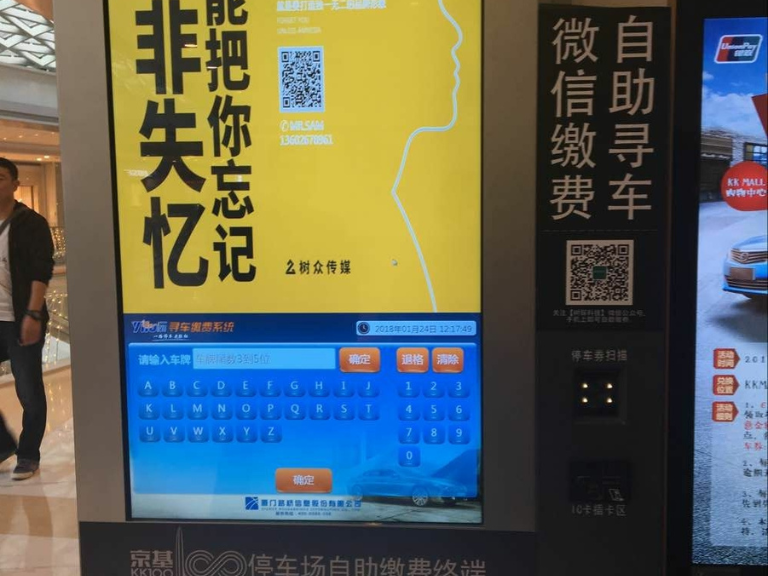

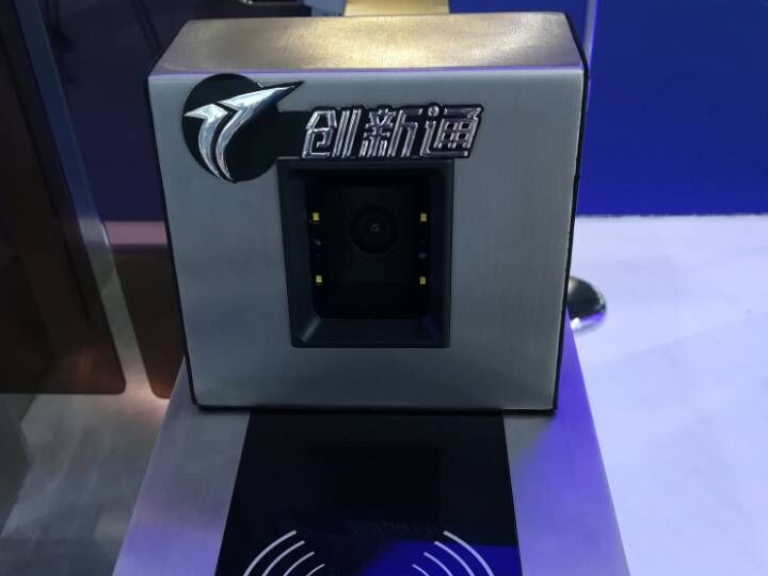

Application
