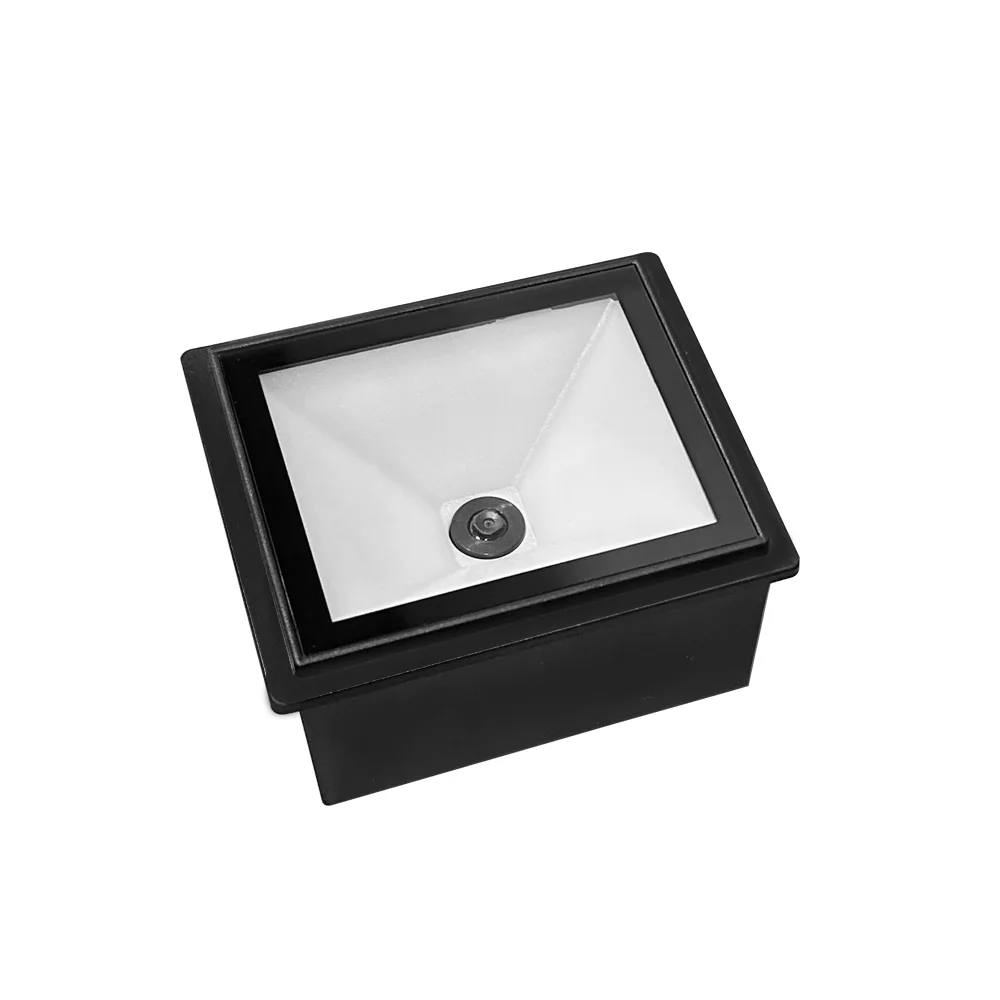

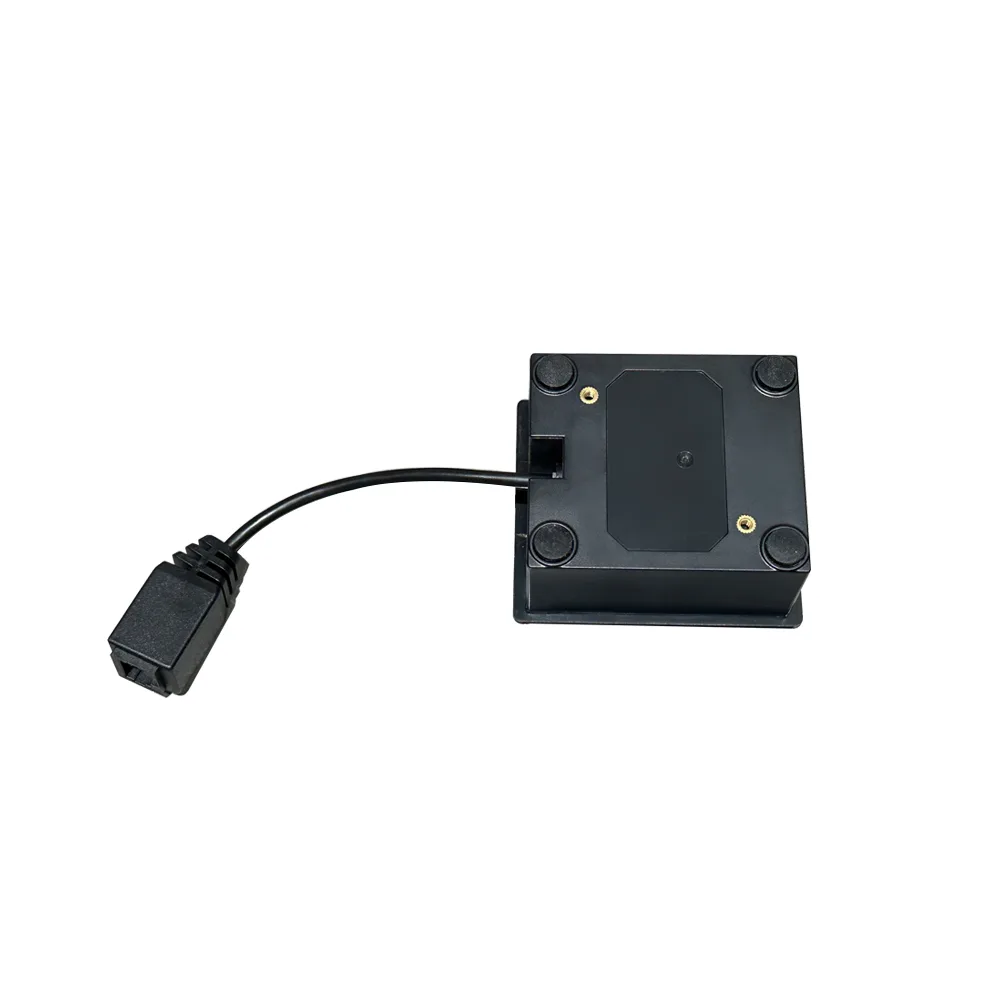

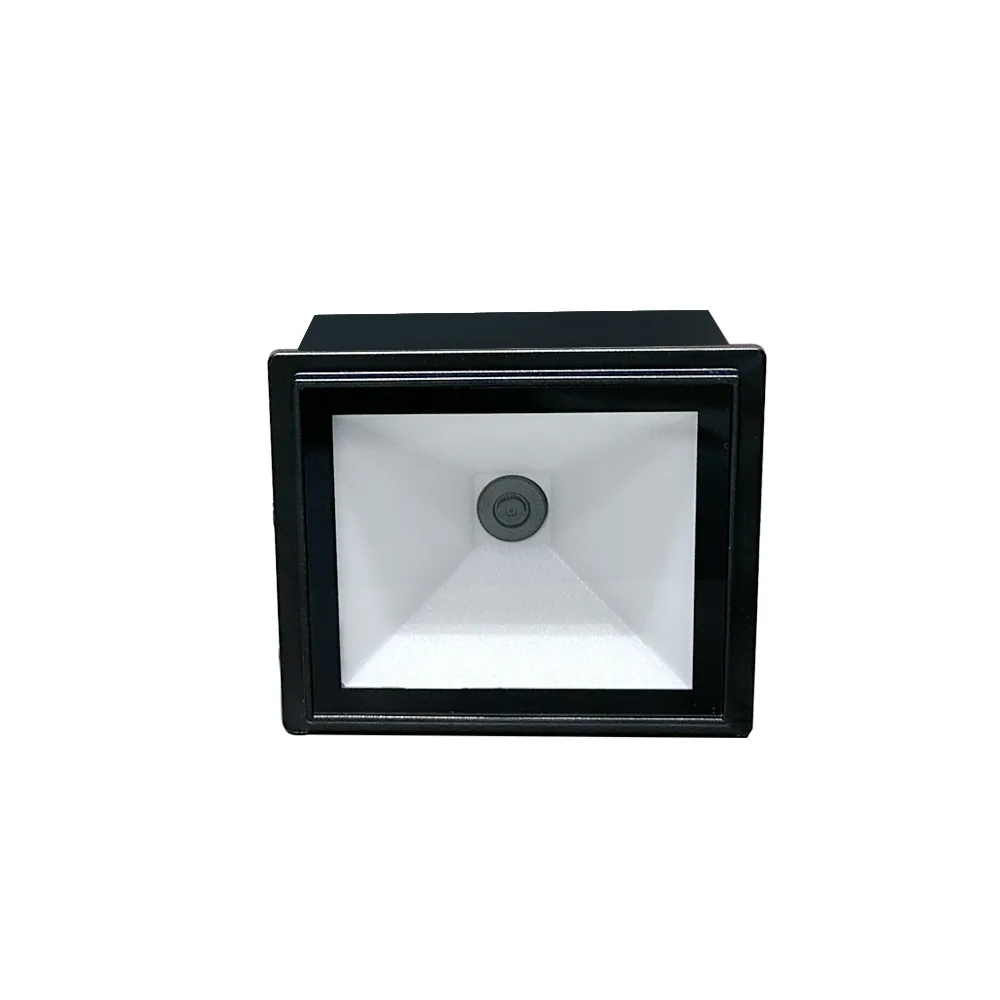

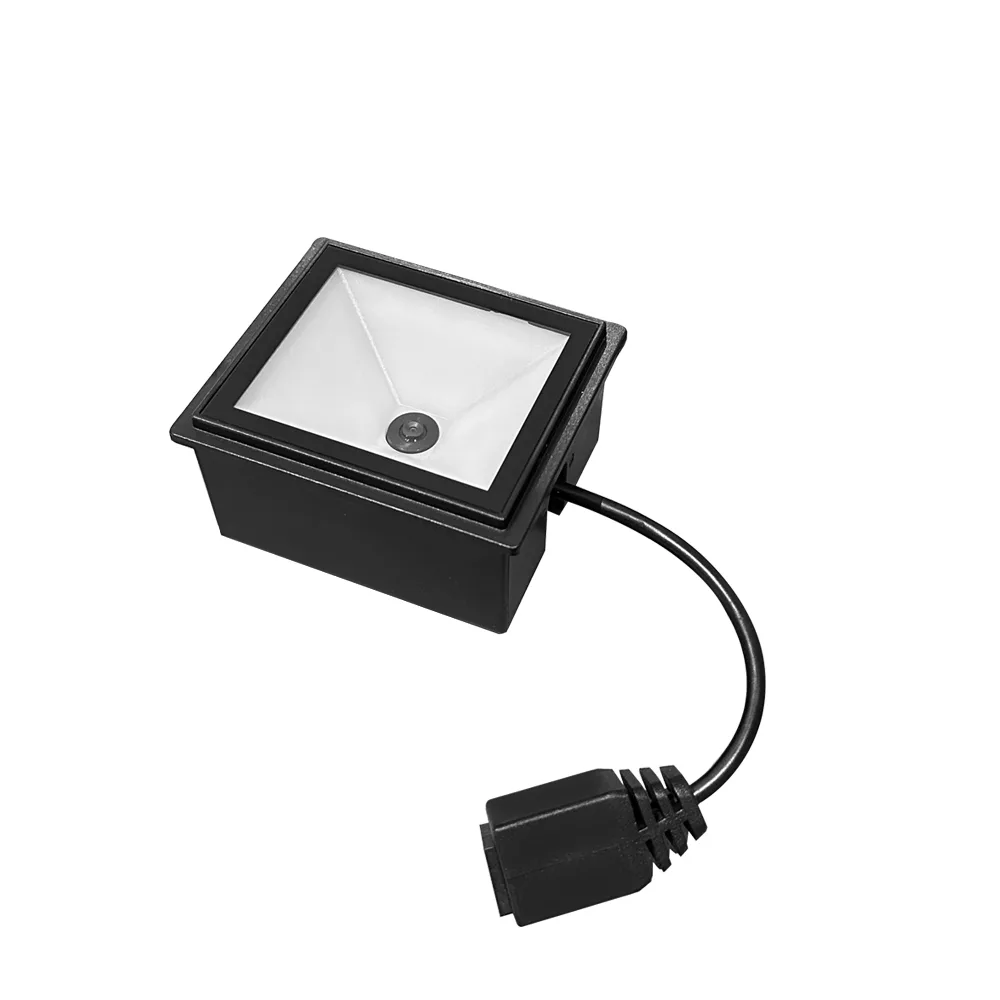

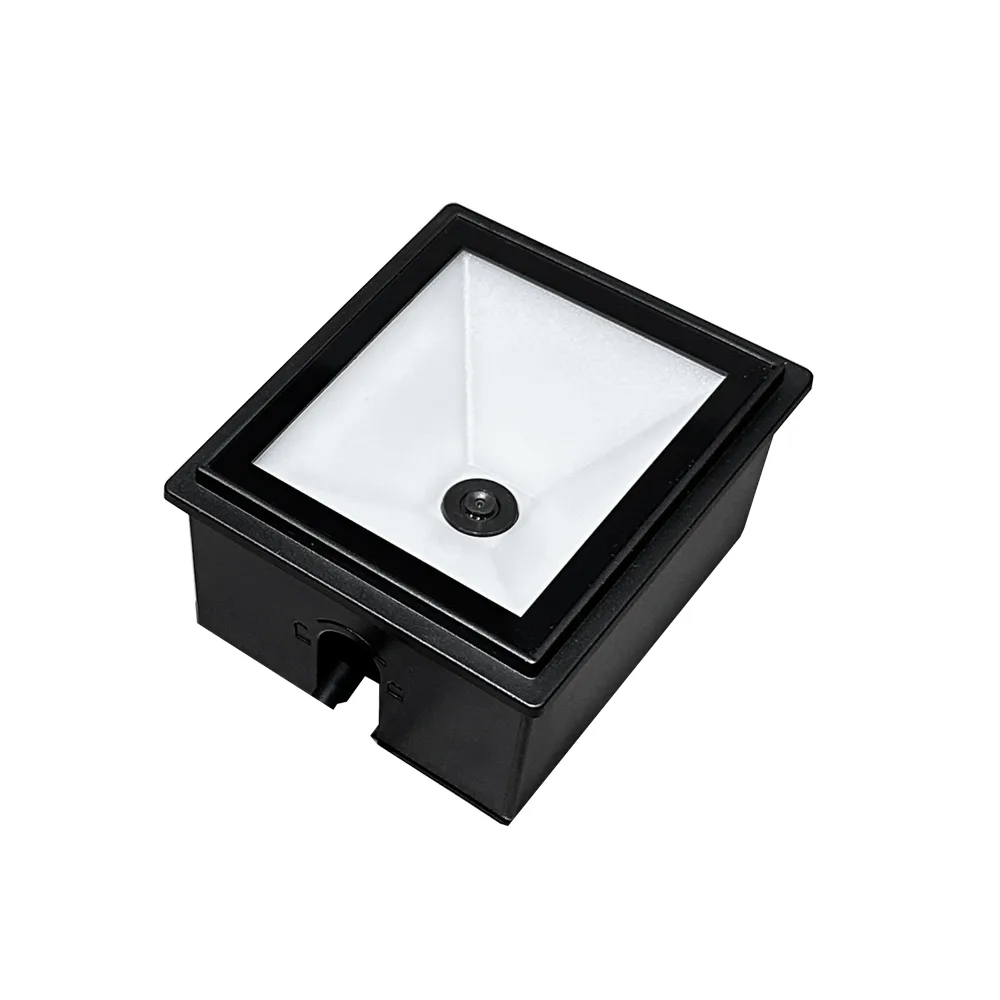

LV3000 2D Fixed Mount Scanner

Product specifications

Product ID

LV3000

Download Brochure

LV3000 2D Fixed Mount Scanner.pdf

Table of Contents

Introduction

Engineered for compatibility with smartphone scanning, this scanner boasts an aggressive performance, ensuring quick and accurate code capture even in low-light conditions. It’s equipped with a high-sensitivity, high-speed CMOS sensor for optimal results.

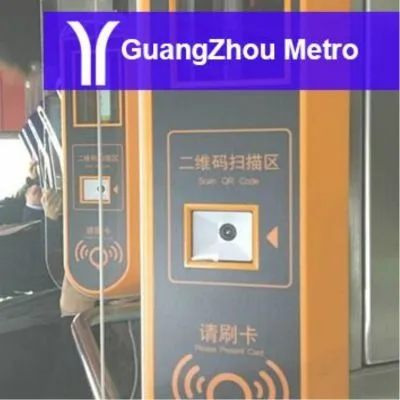

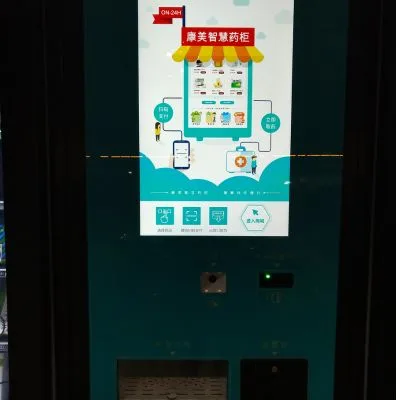

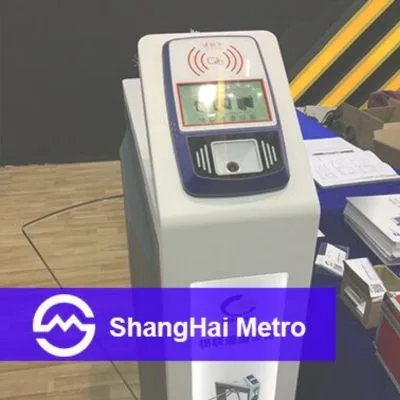

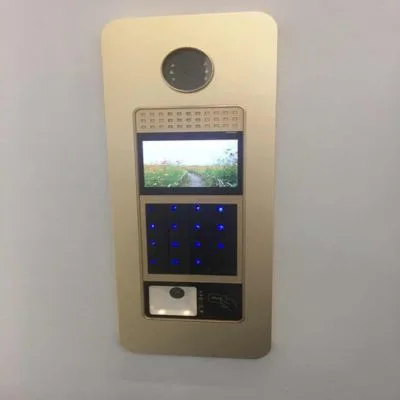

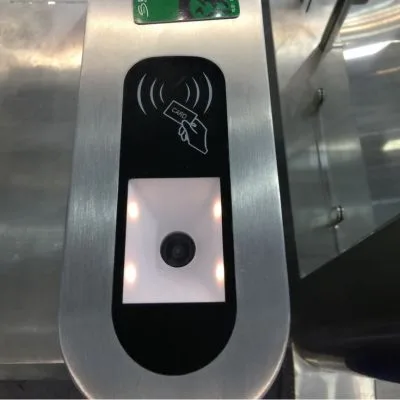

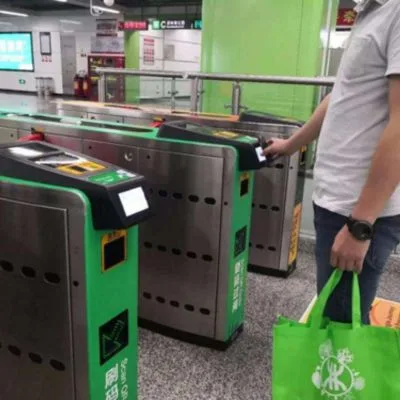

Ideal for a wide range of applications, including ticket checking machines, supermarket lockers, access control, and various types of kiosks.

Features

Image Sensor: 640*480 Coms
Resolution:≥5mil
Interface: USB,RS232 , RS485 , TTL, Wiegand

Specification

Performance	Image Sensor		640*480 Coms
	Illumination		White LED
	Symbologies	2D	(PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Aztec)、(Hanxi code)
		1D	(Codabar)、(Code 39)、(Code 32)、(Industrial 2 of 5)、(Interleaved 2 of 5)、(Standard 2 of 5)、(Matrix 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(UPC-A)、(UPC-E)、(EAN/JAN-8)、(EAN/JAN-13)、(GS1 DataBar(RSS14)
	Resolution*		≥5mil
	Typical Decode Range*	EAN-13 (13mil)	5mm~90mm（Barcode Size：31mm*7mm）
		PDF417 (6mil)	5mm~55mm（Barcode Size：14mm*7mm）
		Code39 (6.6mil)	18mm~45mm（Barcode Size：27mm*8mm）
		Data Matrix (10mil)	5mm~60mm（Barcode Size：5mm*5mm）
		QR Code (15mil)	5mm~80mm（Barcode Size：10mm*10mm）
	Min Print Contract*	≥20%
	Scan Angle**	Skew±70°，Pitch±70°，Roll 360°
	FOV	Diagonal 87.1°，Horizontal 74°，Vertical 65°
Electronic	Interface	USB、RS232 、RS485 、TTL、Wiegand
	Dimension(mm)	78(W)×66.2(D)×41(H)(Max)
	Operating Voltage	5VDC±5%
	Power	1400mW(Typical)
	Current@5 VDC	Operating	280mA(RMS Typical)，300mA(RMS Max)
		Standby	150mA
Environmental	Operating Temperature	0℃~+60℃
	Storage Temperature	-40℃~+70℃
	Operating Humidity	5%~95%（Non-Condensing）
	Embient Light	0~100,000LUX

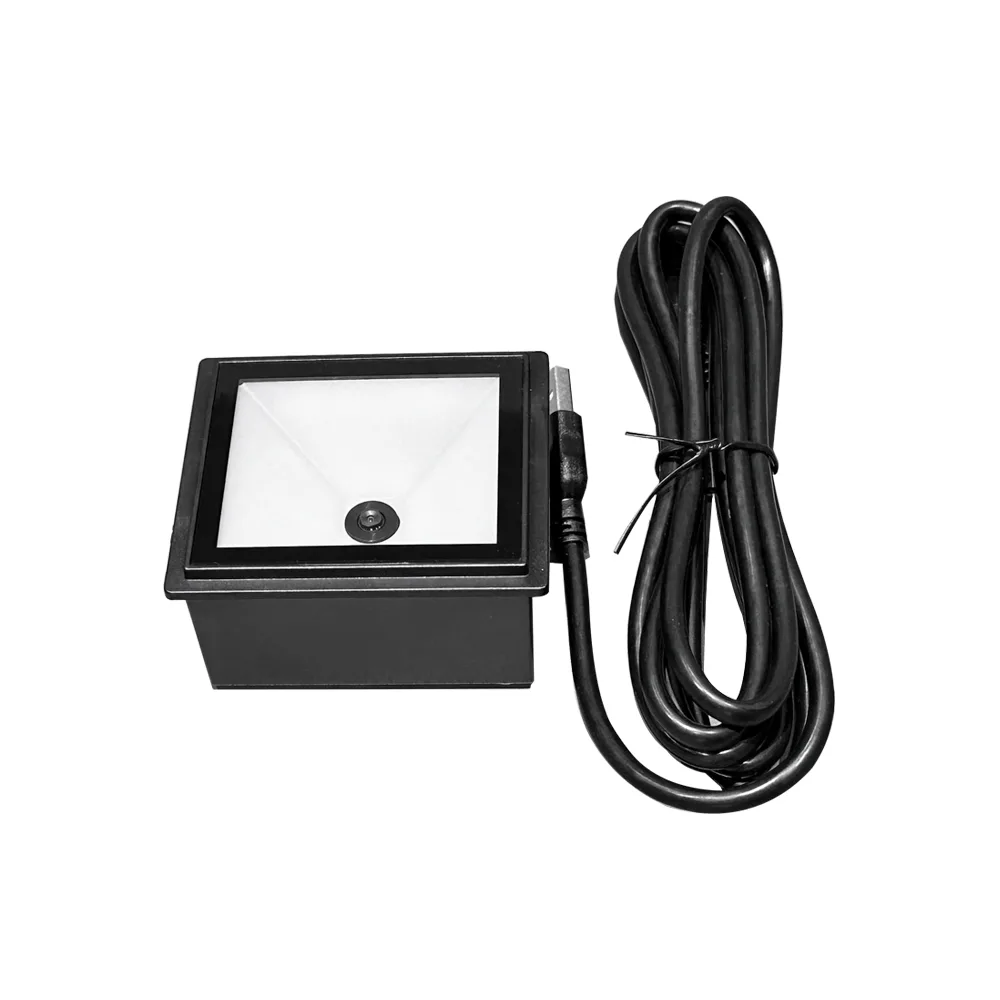

Accessories	Cable	USB	USB Cable
		RS-232	RS232 Cable
		TTL	TTL Cable
		RS-485	RS485Cable
		WG	Wiegand Cable
