S6 Android Mobile Computer

Product specifications

Product ID

Download Brochure

S6 Android Mobile Computer.pdf

Table of Contents

Introduction

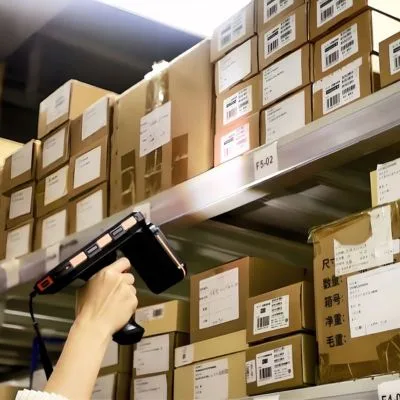

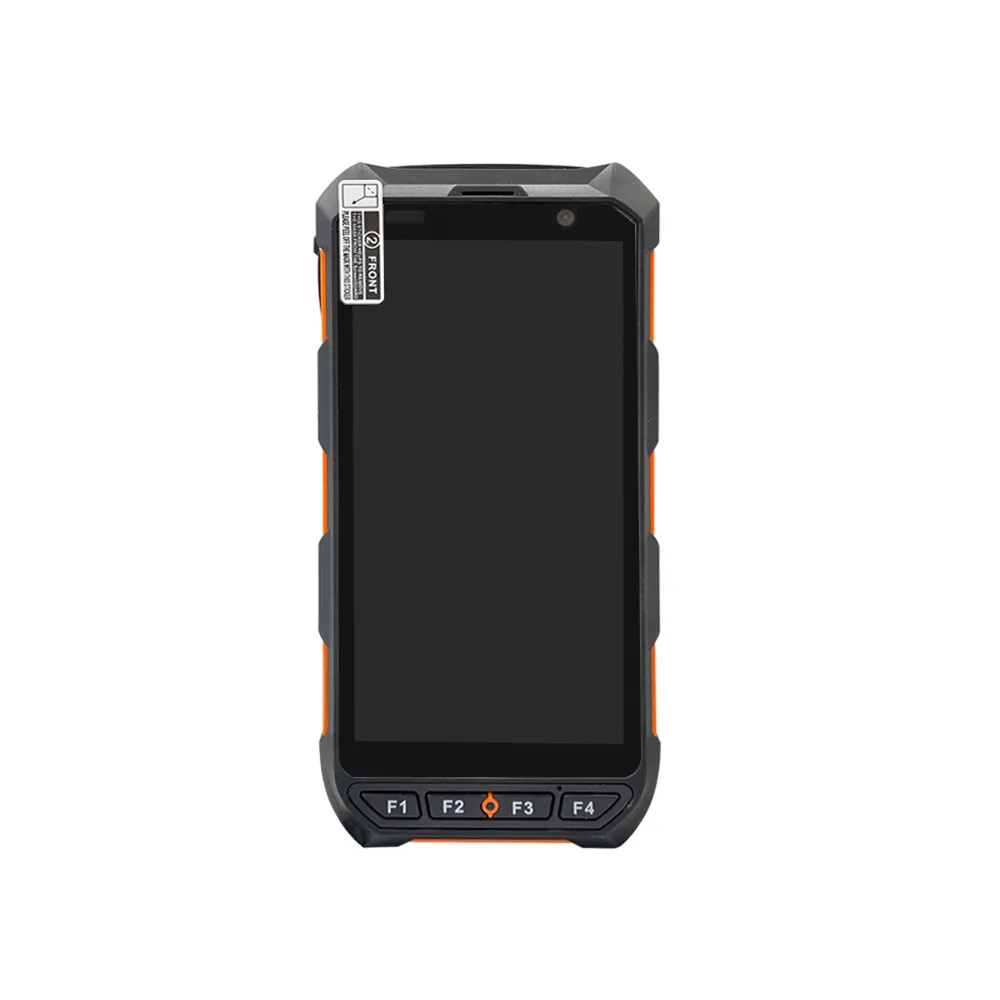

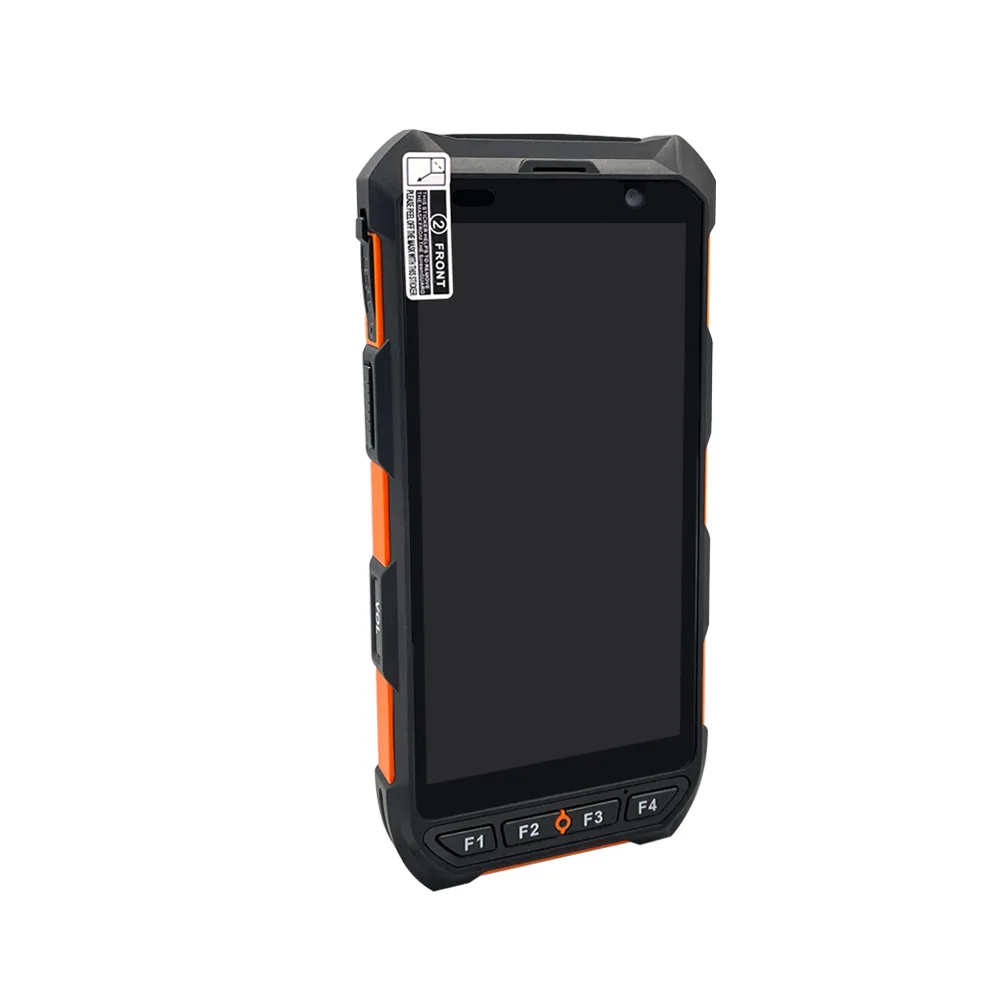

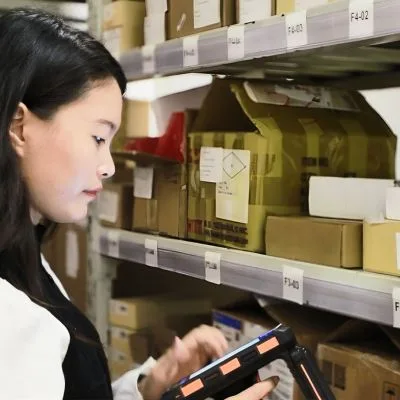

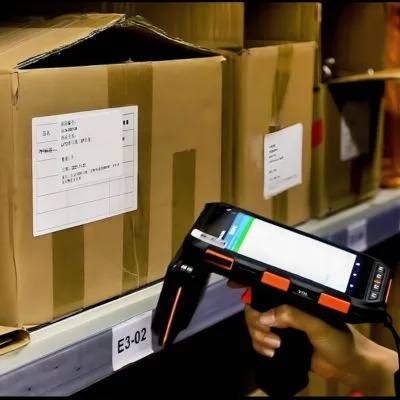

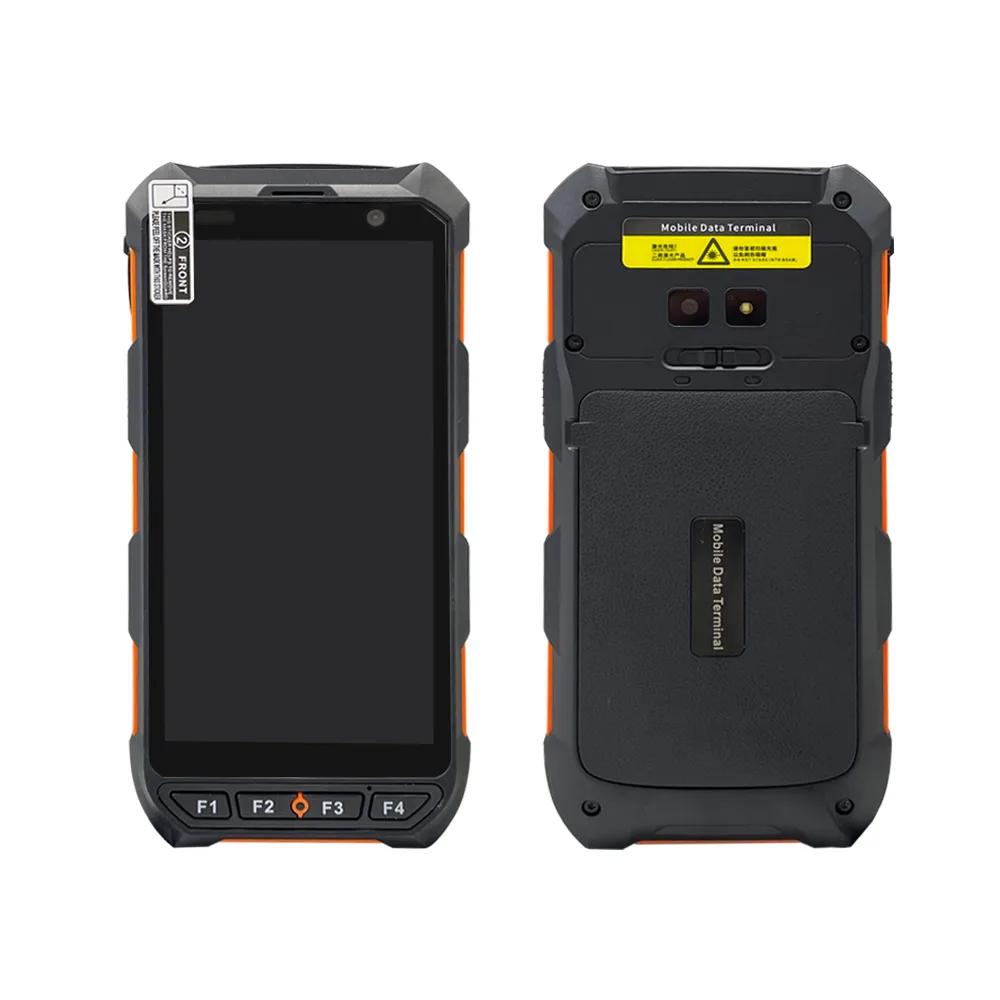

S6 industrial-grade handheld device, designed with a humanized keypad and a robust 5.5 inch touch screen. With a high resolution of 720*1440, it’s perfect for logistics, express delivery, and retail applications.

Powered by an Octa-Core Processor and running on Android 10.0, this device offers a large memory of 4GB RAM /64GB ROM, ensuring a smooth and efficient user experience. The memory can be further expanded up to 256GB with a Micro SD card.

Experience superior data communication and security with our device’s dual 4G & WIFI network and highly secured Android 10.0 system. It ensures high-speed data communication and top-notch security.

The device measures 170.8mm(H)x81mm(W)x28.6mm(D) and weighs 400g, including the battery and wrist strap. It features a tough 5.5 inch TFT-LCD touch screen with LED backlight and a rechargeable li-ion polymer battery of 3.8V, 5500mAh.

Optional features include a 1D/2D bar code reader, color camera, RFID reader, and PSAM security. The device comes standard with a power supply, lithium polymer battery, and Type-C cable. Optional accessories include a cradle. This device is designed to meet the highest standards in logistics, express delivery, and retail.

Features

Operating System:Android 10.0
Resolution:720*1440
5.5 inch TFT-LCD touch screen

Specification

Specifications
Physical Characteristics

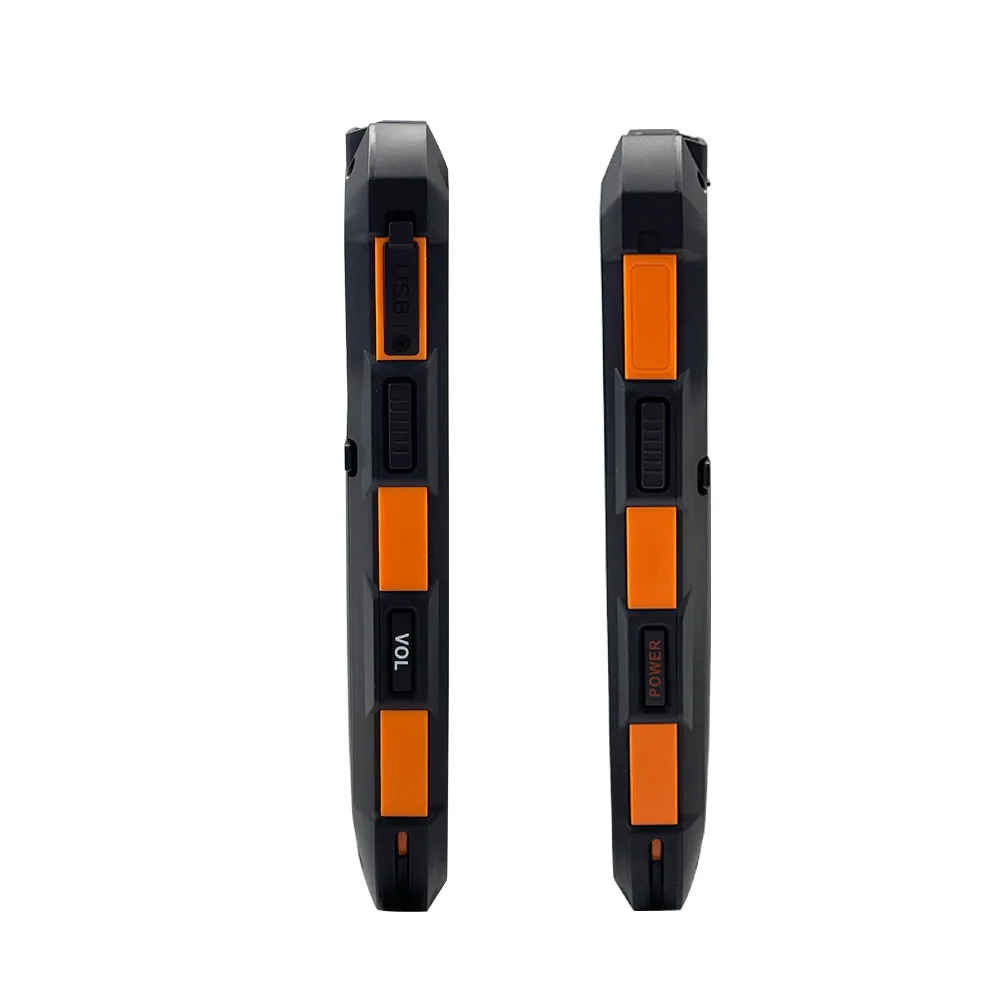

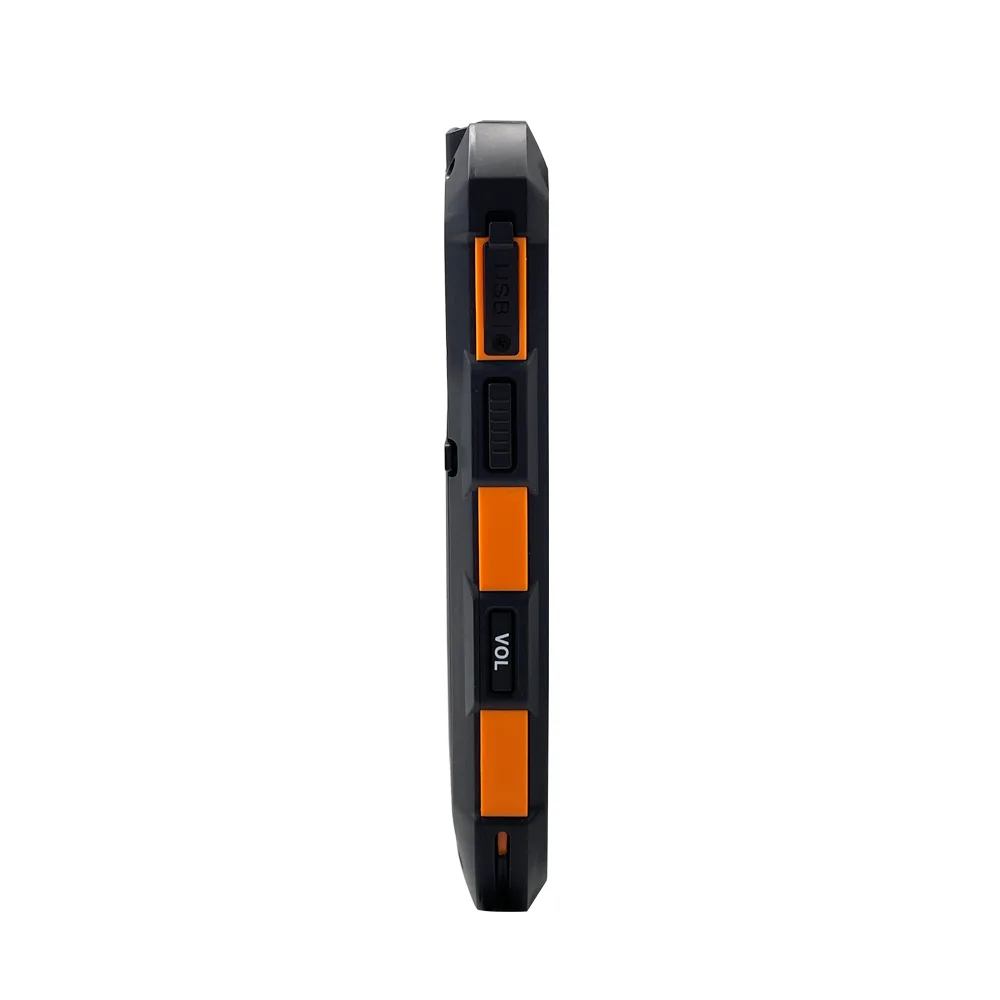

Dimension	170.8mm(H)x81mm(W)x28.6mm(D)±2 mm
Weight	Net Weight :400g (including battery&wrist strap)
Display	Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight
Backlight	LED backlight
Expansions	2 PSAM, 2 SIM, 1 TF
Battery	Rechargeable li-ion polymer, 3.8V,5500mAh
Performance Characteristics
CPU	Cortex A73 2.0GHz octa-core
Operating System	Android 10.0
Storage	4GB RAM/64GB ROM, Micro SD(max 256GB expansion)
User Environment
Operating Temp.	-20℃ to 50℃
Storage Temp.	-20℃ to 70℃
Humidity	5%RH to 95%RH(non-condensing)
Drop Specifications	5ft./1.5 m drop to concrete across the operating temperature range
Sealing	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge
Development Environment
SDK	Handheld-Wireless Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
Data Communication
WWAN	TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN	2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
GPS	GPS(embedded A-GPS), accuracy of 5 m
Data Captuer
Bar code Reader(optional)
1D Bar code	1D laser engine	Honeywell N4313
	Symbologies	All major 1D bar codes
2D Bar code	2D CMOS Imager	Honeywell N6703 2D Scan Engine
	Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, Maxi Code, Postal Codes, US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
Color Camera
Resolution	Rear 13 megapixel, front 5.0 megapixel
Lens	Auto-focus with LED flash

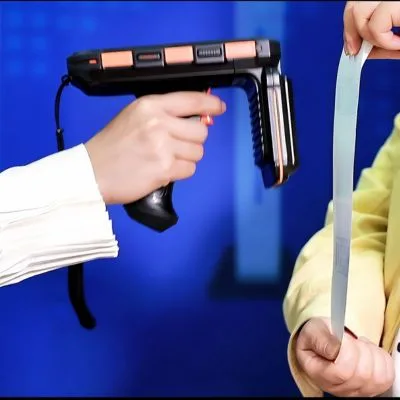

RFID Reader(optional)
RFID Low Frequency	Frequency	125KHz/134.2KHz(FDX-B/HDX)
	Protocol	ISO 11784&11785
	R/W Range	2cm to 10cm
RFID High Frequency/NFC	Frequency	13.56MHz
	Protocol	ISO 14443A&15693, NFC-IP1, NFC-IP2
	R/W Range	2cm to 5cm
RFID UHF	Frequency	865~868MHz or 920~925MHz
	Protocol	EPC C1 GEN2/ISO 18000-6C
	Antenna Gain	Circular antenna(2dBi)
	R/W Range	2m(tags and environment dependent)
PSAM Security(optional)
Protocol	ISO 7816
Baud Rate	9600, 19200, 38400,43000, 56000, 57600, 115200
Slot	2 slots(maximum)
Accessories

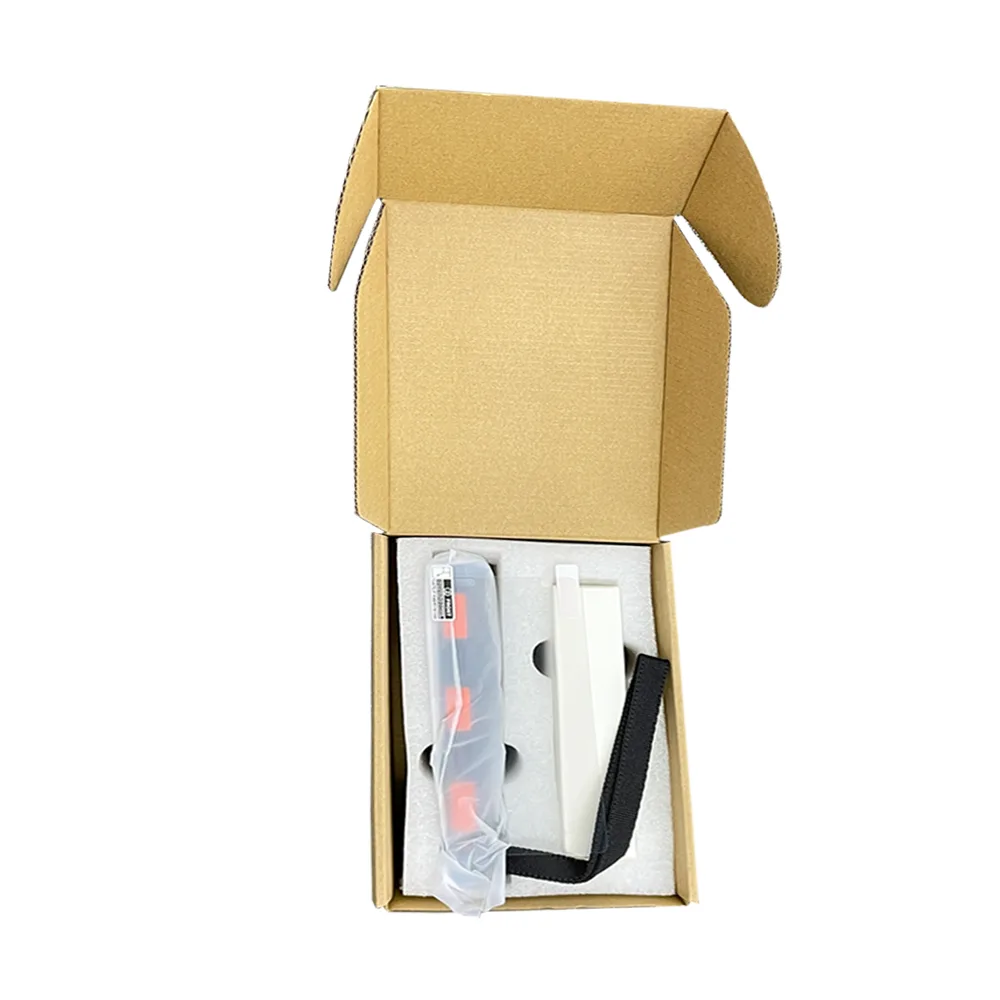

Standard	1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable
Optional	Cradle
