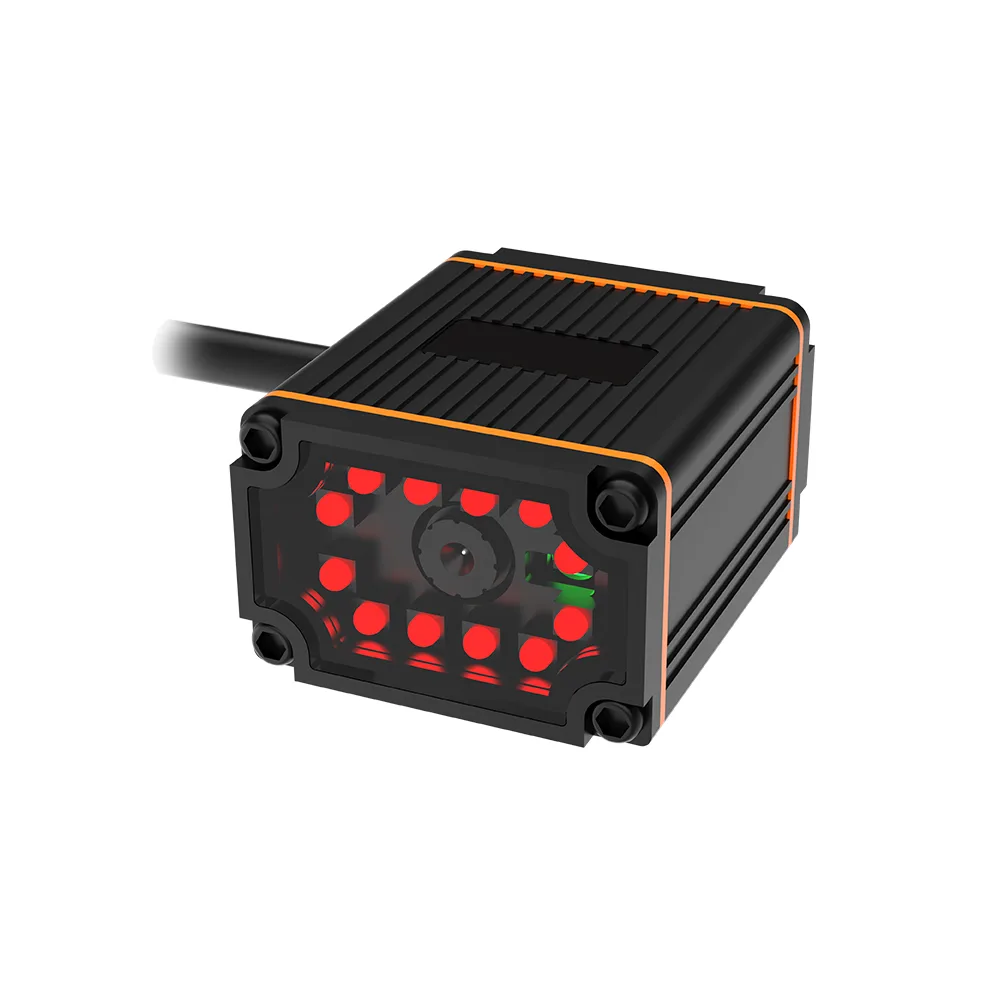

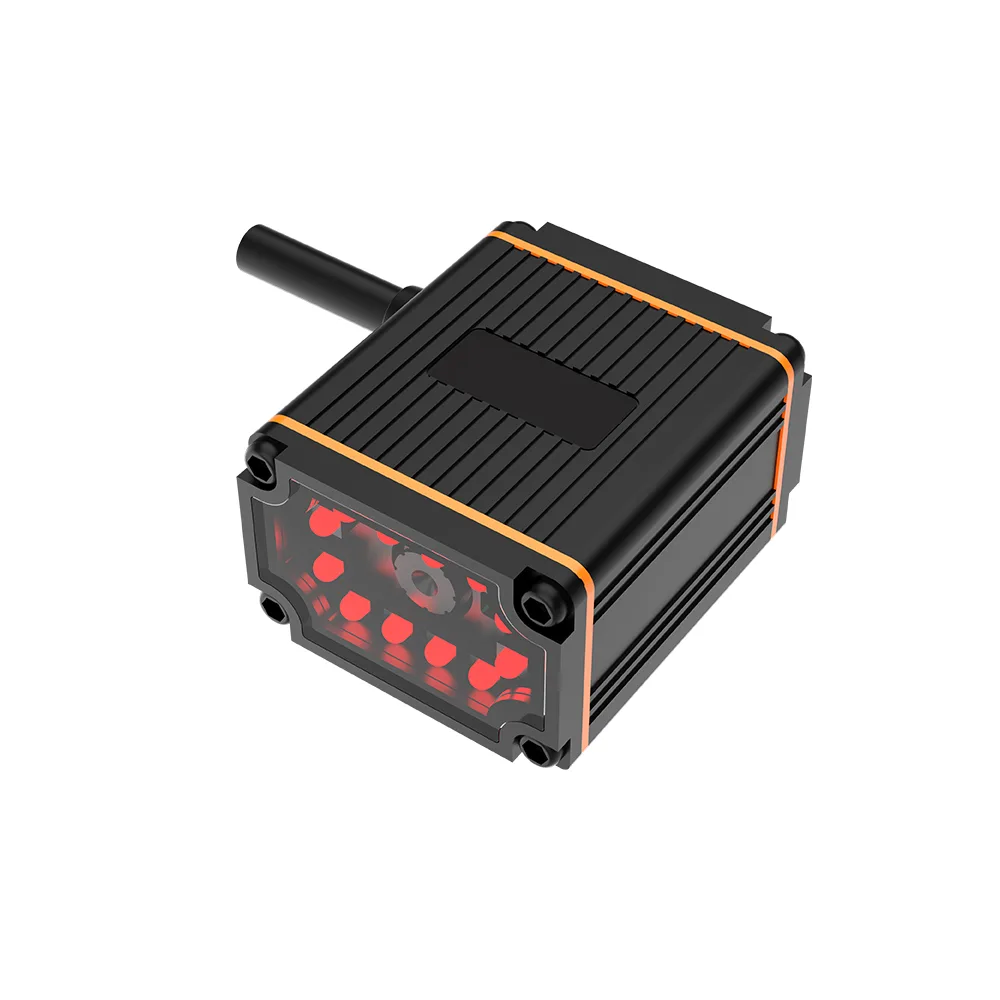

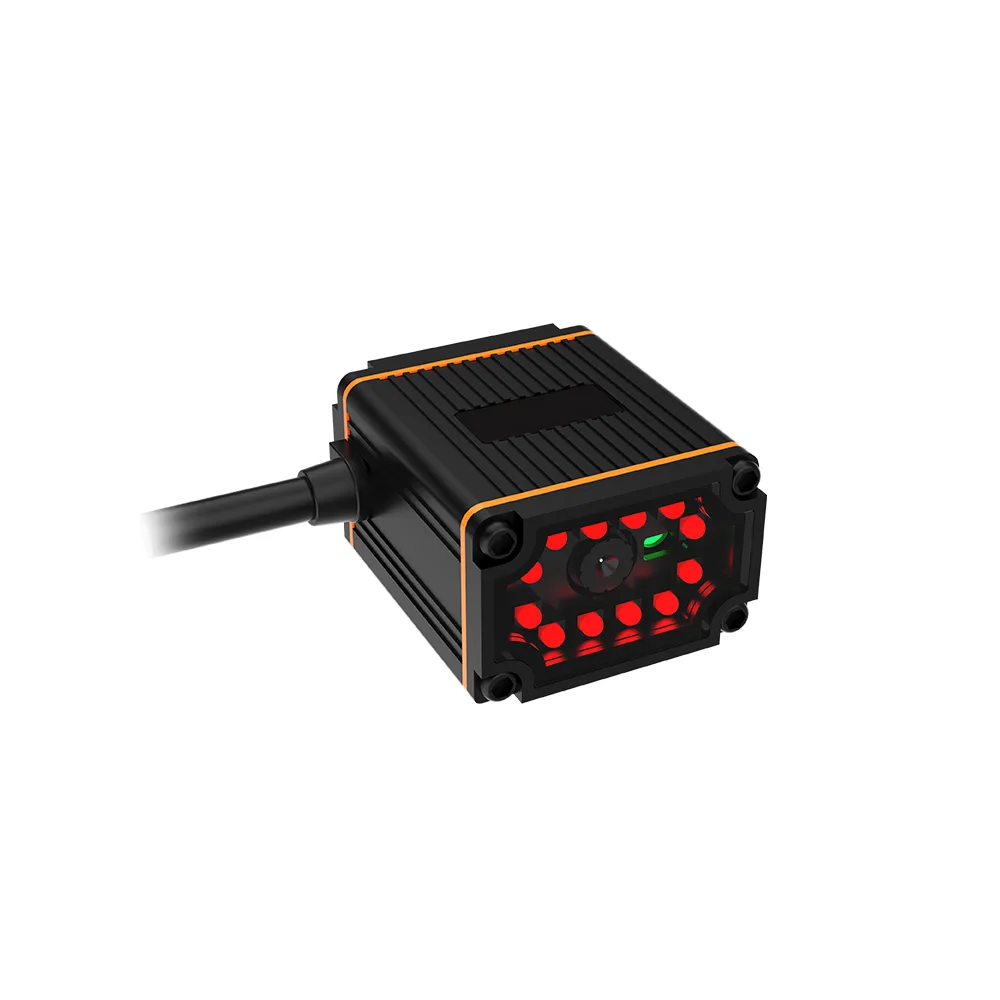

RK4000 Industrial Fixed Mount Barcode Scanner
Product specifications
Product ID
RK4000
Category
Industrial Barcode Scanner
Resolution
1280 * 800
Illumination
High brightness red light/High brightness white light
Symbologies
2D/1D
Interface
RS232，USB (HID ; CDC)，Ethernet（TCP/UDP/Modbus）
Dimensions
36（W）×43（D）×24（H）
Sealing
IP65
Download Brochure
Table of Contents
Table of Contents
RK4000 is a robust industrial level fixed mount barcode scanner designed to realize production line automation. It is IP65 grade with dust proof and water proof features and can withstand the harsh industrial use environments.
Features
- Rugged Barcode Scanning
- It excels in reading poorly printed, contaminated, or deformed barcodes that other scanners may struggle with.
- Industrial-Grade Protection
- With an IP65 industrial protection grade, the RK4000 is suitable for various complex industrial environments. It is resistant to dust and water, ensuring reliable operation even in challenging conditions.
- Quick Barcode Capture
- It boasts a high recognition rate for barcodes that move quickly along the assembly line, making it ideal for fast-paced industrial settings.
- Smart Illumination System
- Armed with smart illumination adjusting function, it can meet all general environment as well as production line demand scanning environment, such as different materials (refection for example), shape (curved surface), background and code color.
- Flexible I/O extensible interfaces
- With I/0 extensible interfaces, the scanner can realize 1 way out photoelectric coupled isolate input (NPN / PNP /relay) and two ways out photoelectric coupled isolate output(Good ; NG). It can control the external device.
| Scan Performance | Resolution | 1280 * 800 | ||
| Field of view | Horizontal 46° (H)，Vertical 29° (V) | |||
| Illumination | High brightness red light/High brightness white light | |||
| Aiming | Green LED aiming | |||
| Scan Mode | Auto sense; external pulse mode; continuous mode; serial command mode | |||
|
Symbologies |
1D |
UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 ,
Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , Composite Code-A , Composite Code-B , Composite Code-C |
||
| 2D | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode | |||
|
Typical depth of field |
Version | SR | HD | |
|
DOF |
Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~400 mm
QR (10 mil) : 35 mm ~ 130 mm |
Code 39 (3 mil) : 50 mm ~ 90 mm
Data Matrix (10 mil) : 40 mm ~ 150 mm QR (7 mil) : 35 mm ~ 120 mm |
||
| Resolution | 1D : ≥4 mil ; 2D : ≥9 mil | 1D : ≥3 mil ; 2D : ≥7 mil | ||
| Print
Contrast |
≥20% (UPC/EAN 100% , PCS 90%) | |||
| Mechanical/ Electrical Parameters | Dimensions (mm) | 36（W）×43（D）×24（H） | ||
| Enclosure | Aluminum alloy | |||
| Sealing | IP65 | |||

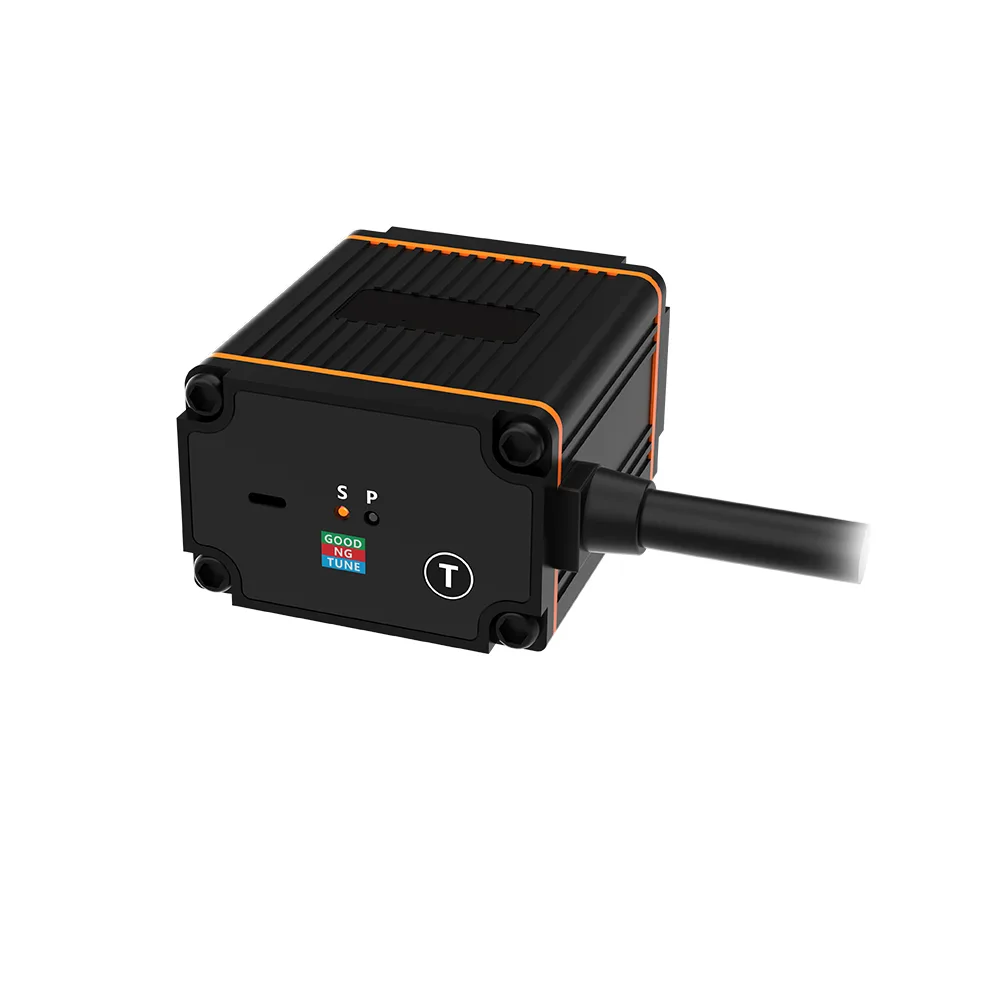

| Indicator | Buzzer, LED | |||
| Interface | RS232，USB (HID ; CDC)，Ethernet（TCP/UDP/Modbus） | |||
| Power | 5-36 VDC | |||
| Input | 1 way out photoelectric coupled isolate input (NPN / PNP /relay) | |||
| Output | two ways out photoelectric coupled isolate output (Good ; NG) | |||
| Current@5
VDC |
Working current 300 mA ±5%（typical）, 450 mA ±5%（Max） Standby current 100 mA ±5% | |||
| Environmental | Storage | -40℃~+70℃ | ||
| Working | -20℃~+50℃ | |||
| ESD | ±20 kV（air discharge），±8 kV（direct discharge） | |||
| Certification | CE EN55022 , FCC Part 15 Class B , CE EMC Class B | |||
Videos

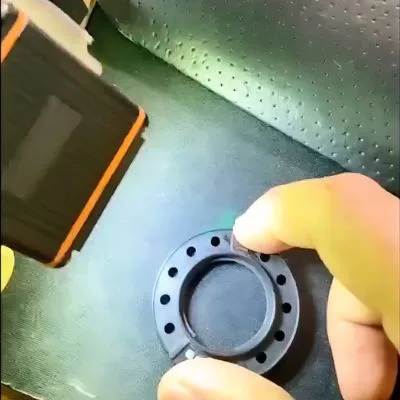

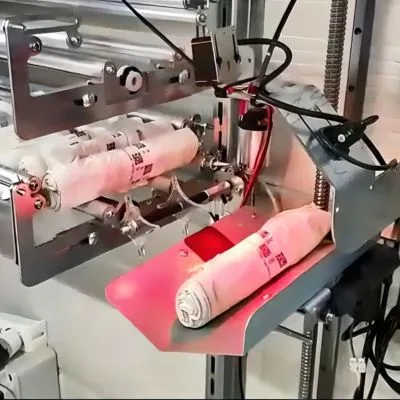

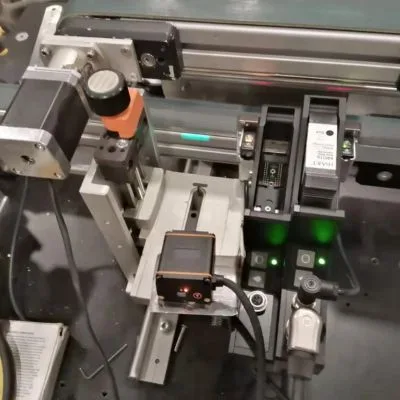

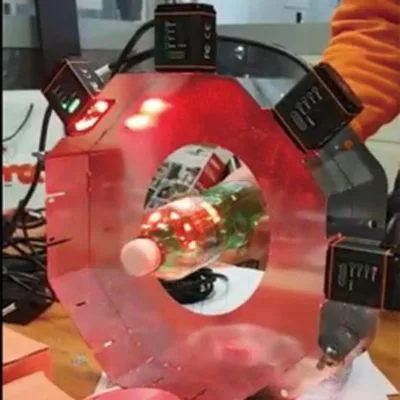

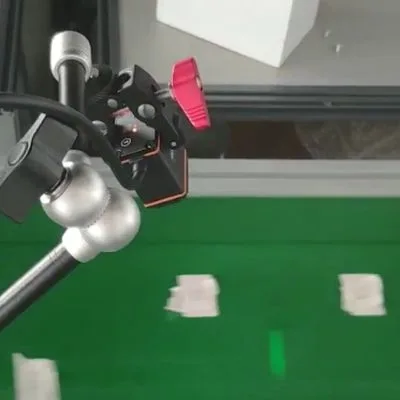

Application
