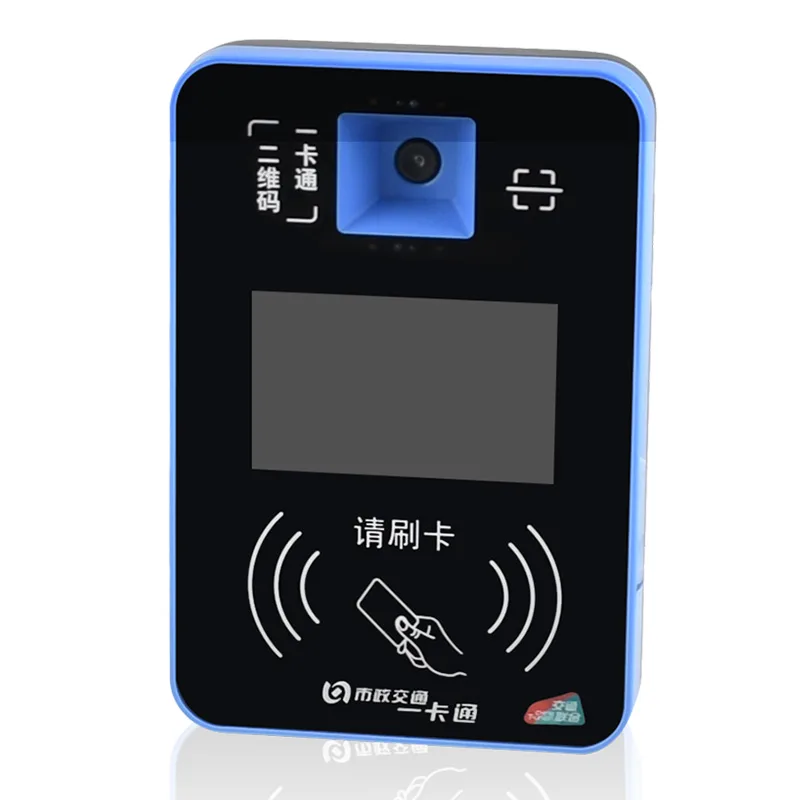

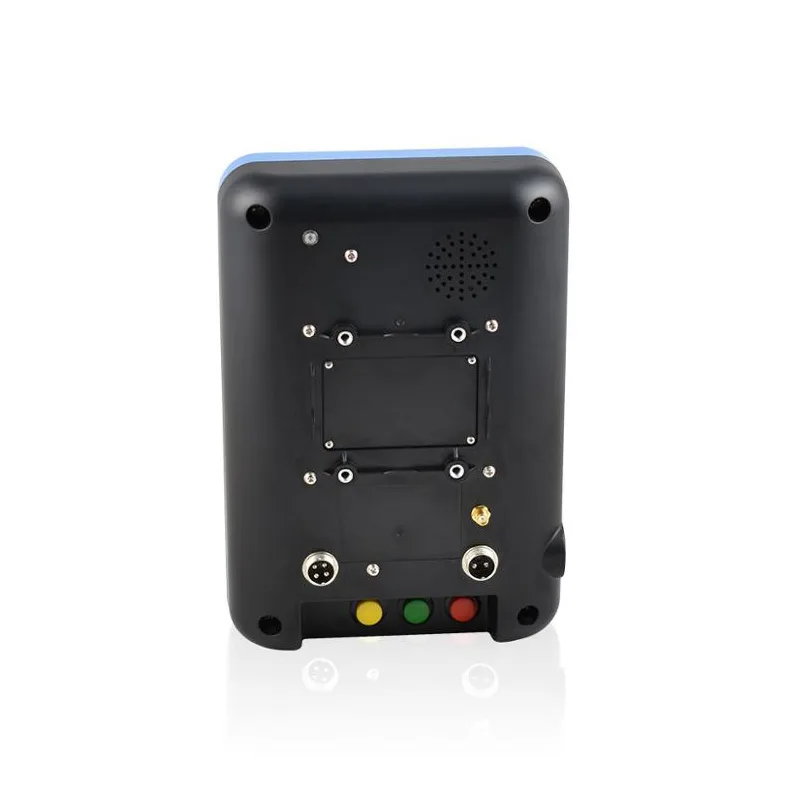

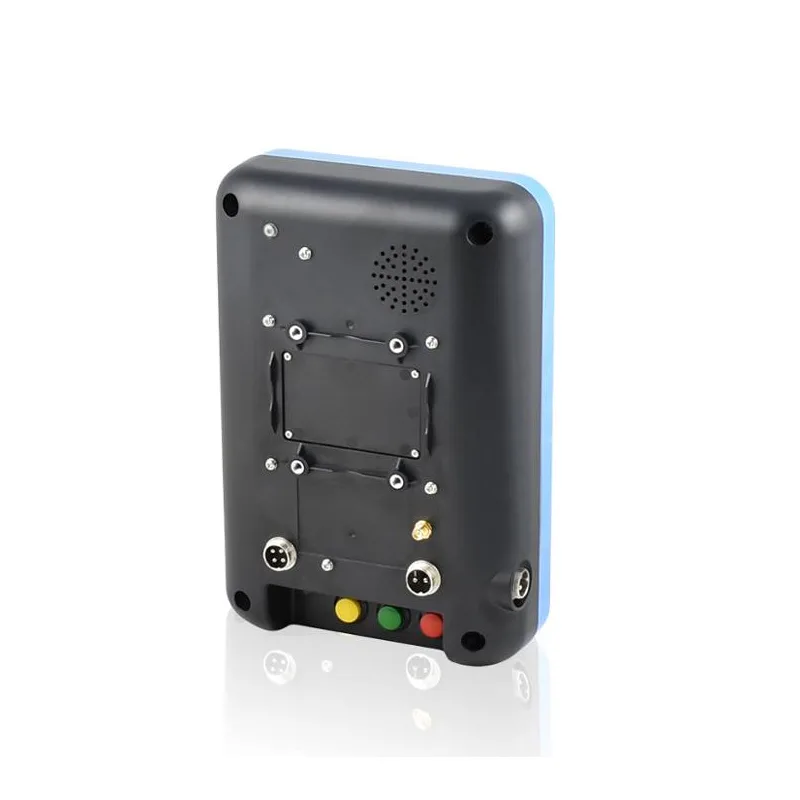

RD300 Bus Ticket System
Product specifications
Product ID
RD300
Category
Smart Terminal
Processor
32 bit ARM, 120MHz
Sim
Support four ISO7816 sim cards
Symbologies
2D/1D
Interface
RS232, RS485
Display
5 inch TFT Color Display
Sim
Support four ISO7816 Sim Cards
Download Brochure
Table of Contents
Table of Contents

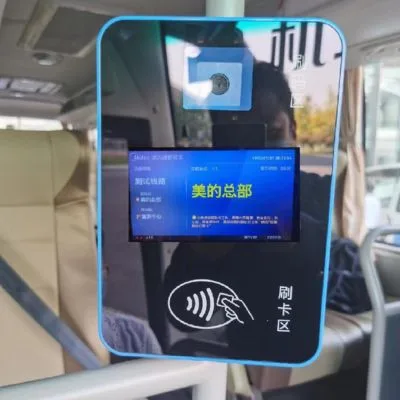

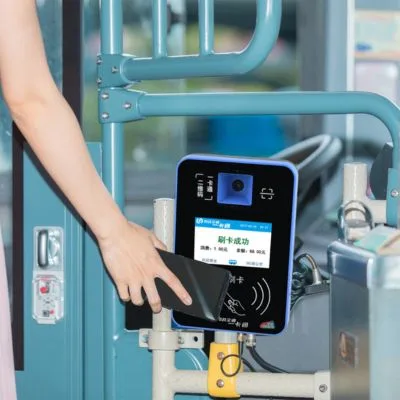

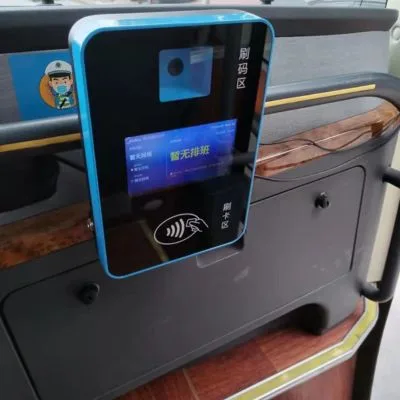

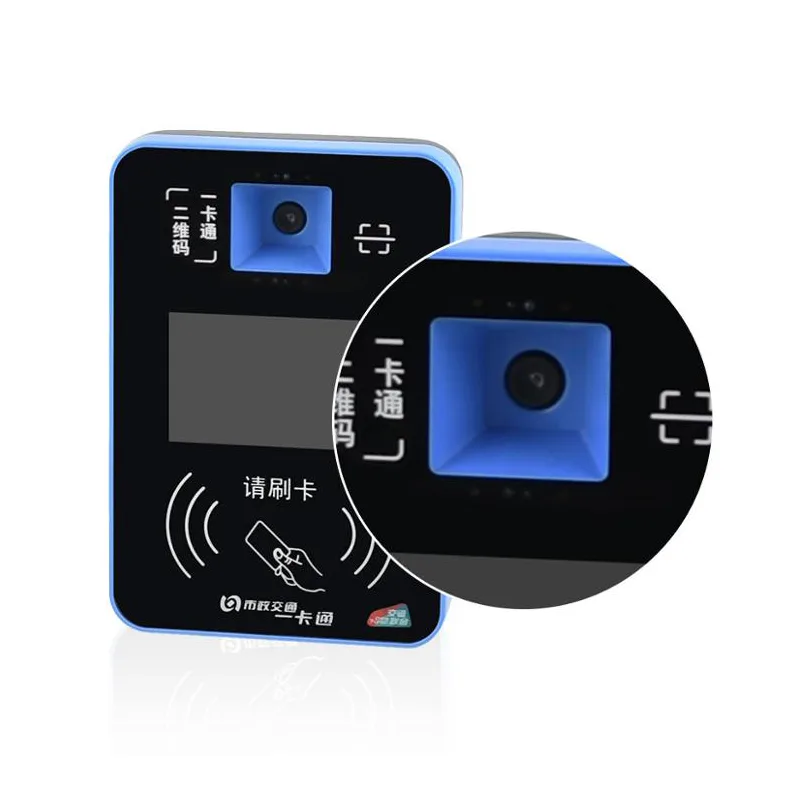

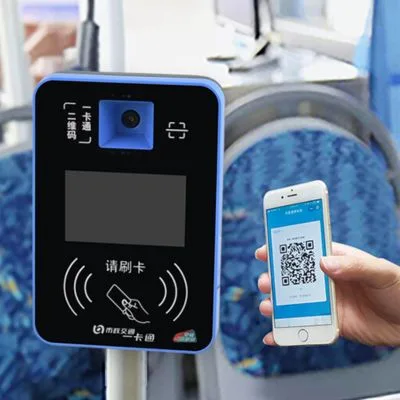

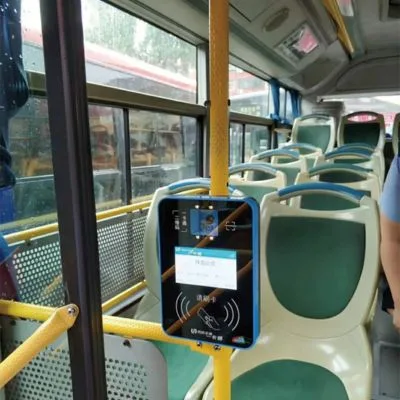

The RD300 Bus Payment Validator is a fast and efficient fare collection solution that accepts various payment methods, including IC cards, UnionPay, and 2D code payments such as WeChat and Alipay. This device also supports GPS, positioning, and tracking to provide real-time vehicle location and route data for fare collection. With its ability to scan 2D codes from printed or screen displays quickly, the RD300 offers passengers a convenient and hassle-free payment experience. Additionally, the device provides statistics on payment amounts and passenger payment times, allowing bus companies to reduce cash flow inventory workload and bank charges, as well as prevent losses from residual coins and counterfeit money.
Features
- Working Temperature from-20 to +70 degree
- Lower consumption
- Free SDK &API Engineer Directly help for technical, easlier for second development
- Frequency band can be customized (support North America, Europe, Asian and Africa)
| Items | RD300 |
| Processor | 32 bit ARM, 120MHz |
| Memory | 64Kb FRAM. 8Mb+1Gb DataFlash |
|
Contact less Card Scanning |
1D, 2D barcode payment; support ISO14443 card, CPU card such as Mifare 1 S50/S70, MifarePro, IC card, 13.56 sim card etc. |
| Sim | Support four ISO7816 sim cards |
| Voice | It can store 265 pcs of voice, and the voice can be updated through software and no need to dismount the machine. |
| Display | 5 inch TFT color display |
| Power | 9V-36V，it has protection for over-voltage, over-current, converse connection, under-voltage. |

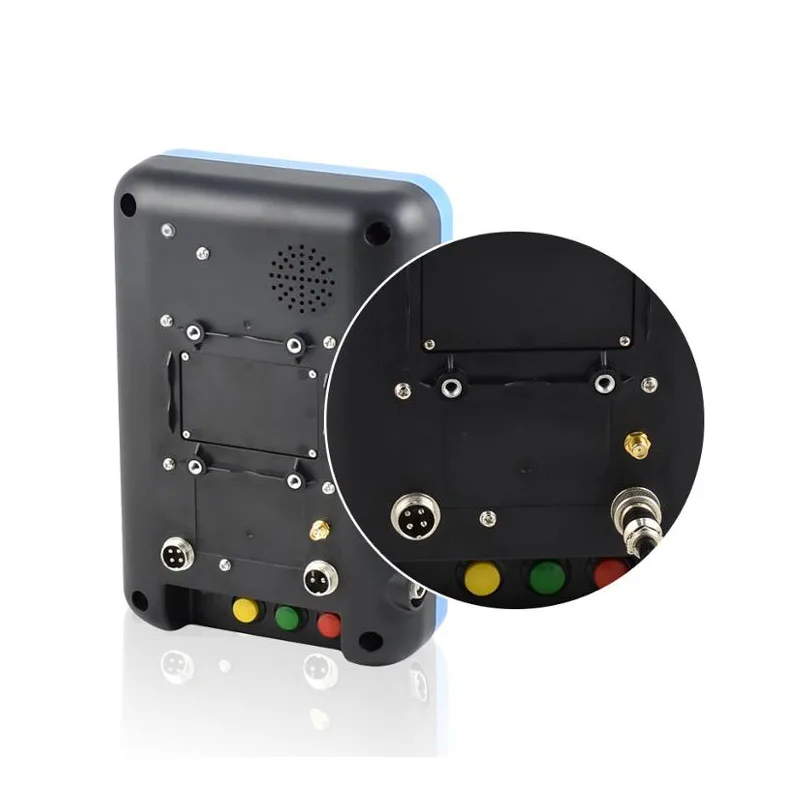

| Interface | RS232, RS485 |
| Wireless Communication (optional) | TDD-2TG/FDD-LTE/wcomA/TD-SCDMA/GSM/GPRS/
EDGE/WIFI/zigbee |
