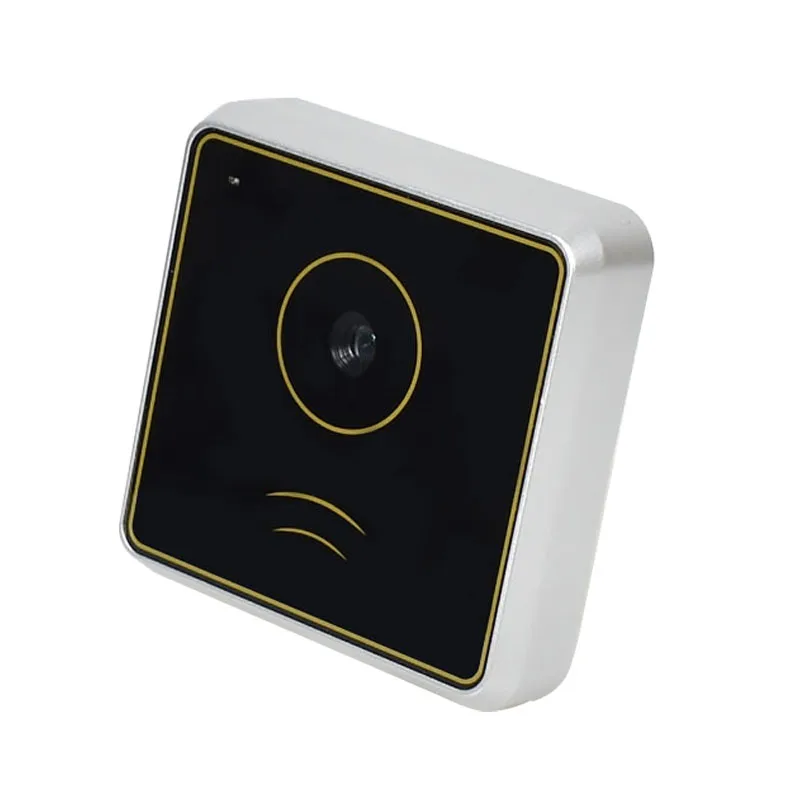

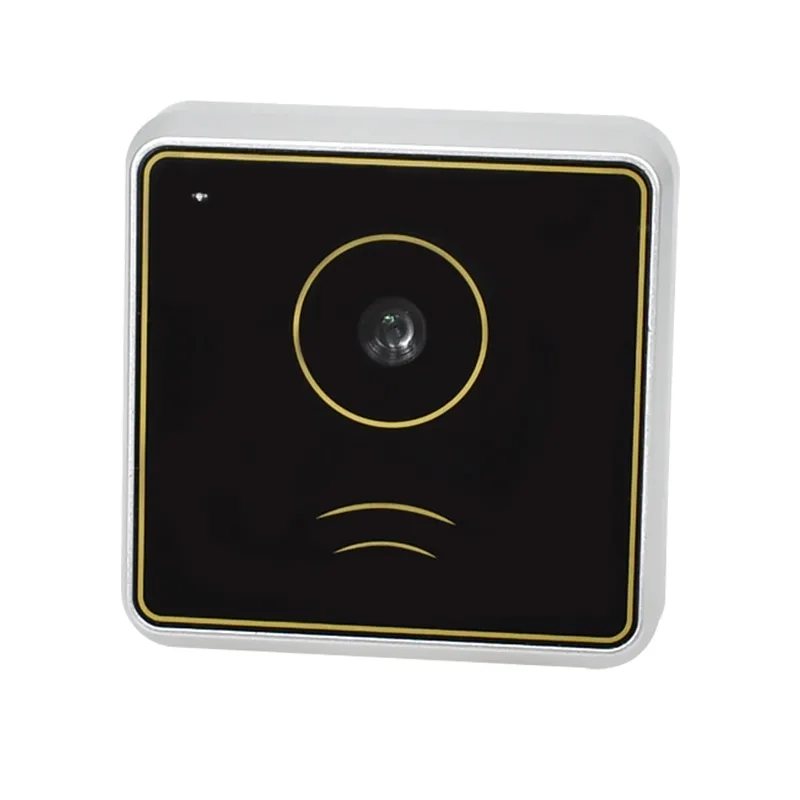

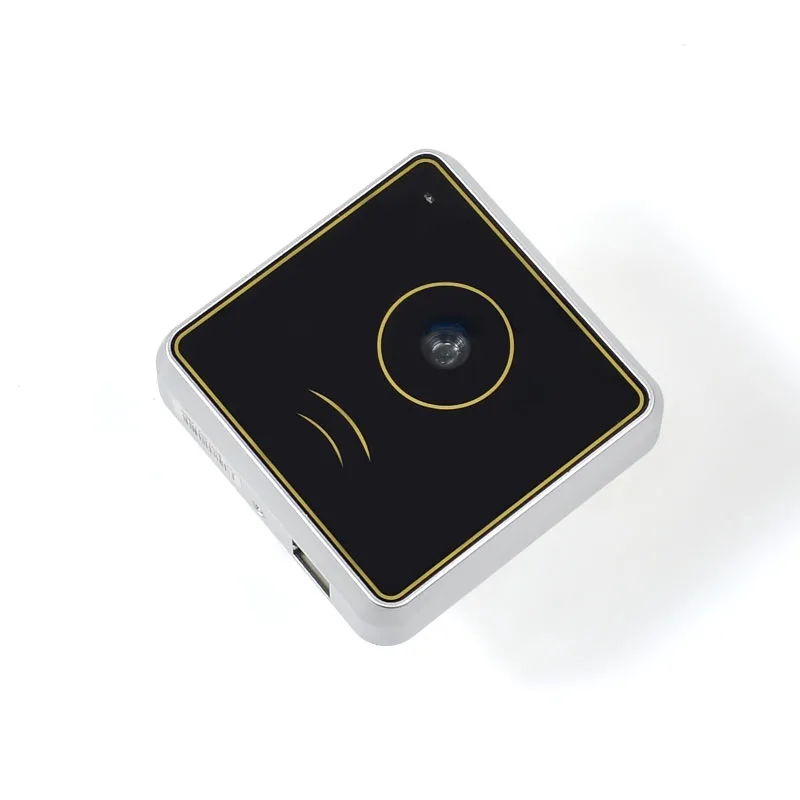

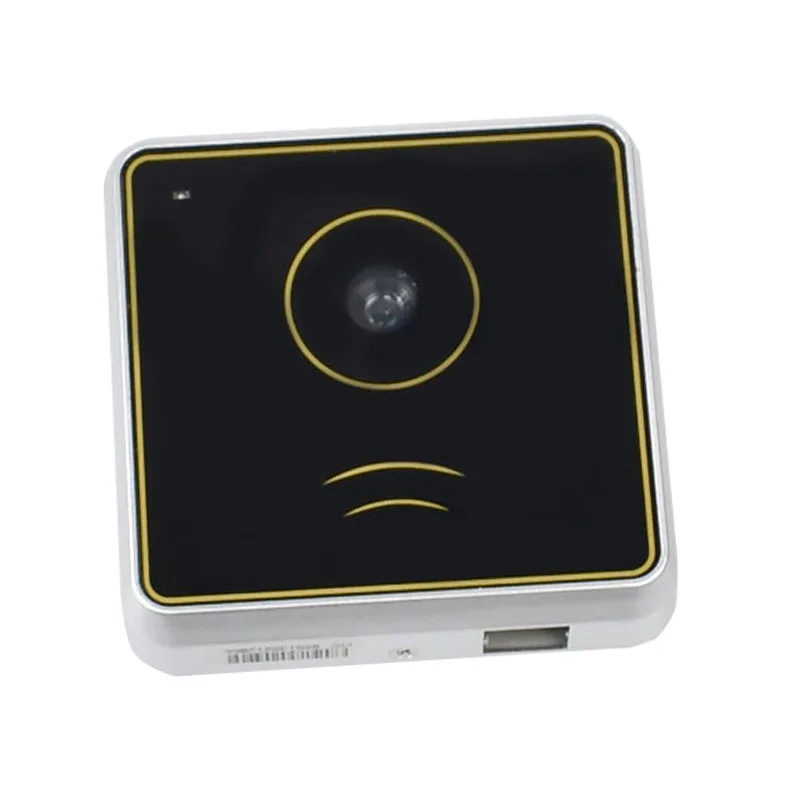

RD006 Versatile Proximity Card Reader System with 2D Code Scanner
Product specifications
Product ID
RD006
Category
Access Control Scanner
Image Sensor
752X480
Light Source
White LED
Symbologies
2D/1D
Reading Distance
10-55mm
Scan Angle
360° Full Angle
Power Input
9-18VDC
Download Brochure
Table of Contents
Table of Contents
This access control system is designed to enhance traditional access control, lift control, and yard products by providing a 2D code access function without the need to replace the main controller.
The product features Wiegand 26/34 output, allowing for seamless integration with existing systems. It also offers a 2-channel relay output, voice amplifier, and speakers for enhanced user experience. The offline to open door feature ensures continuous operation even in the absence of network connectivity.
Features
- QR Code Scanner, IC Card Reader
- Door Access Control, Elevator Control
- TCP/IP
- RSA Encryption
- Voice Customized
- 4G, Bluetooth, WIFI As Options
| 2D Code Engine Component Parameters | |
| Image Sensor | 752X480 |
| Light Source | White LED |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. | |
| Reading Distance | 10-55mm |
| Scan Angle | 360° Full Angle |
| Input and Output Parameters | |
| Power Input | 9-18VDC |
| Working Current | < 600mA |
| Can read like ISO14443Aor ISO14443B card serial number | Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. |
| Barcode or 2D code input | Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules |

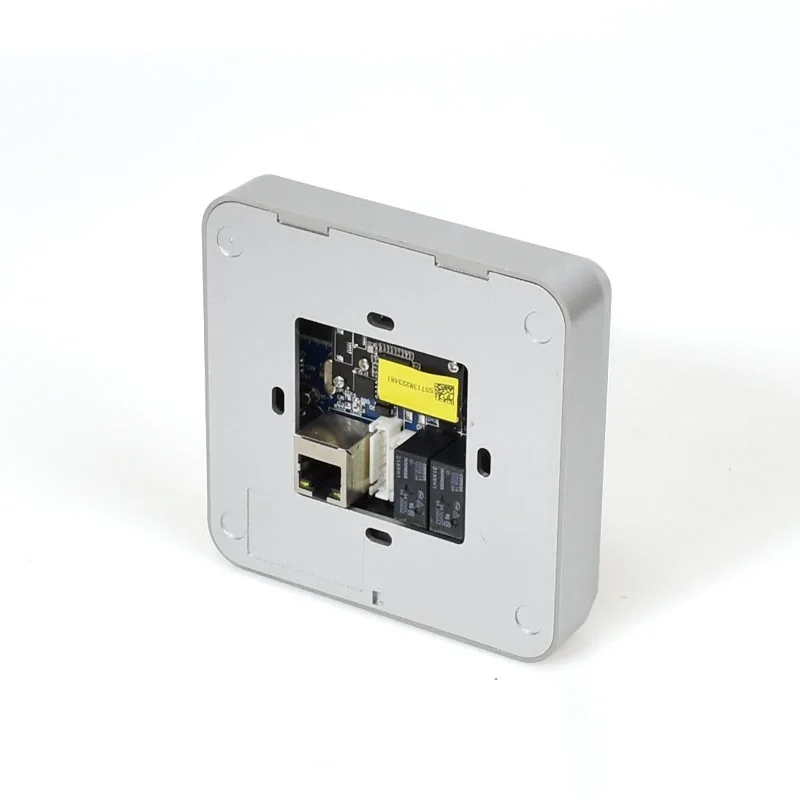

| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth |
| Communication Protocol | Support TCP / UDP / HTTP |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice |
| Device input | 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input |
| Equipment output | 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc. |
| Wiegand output | Wiegand 26/34 output |
| Dimensions | |
| Installation size | 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box |

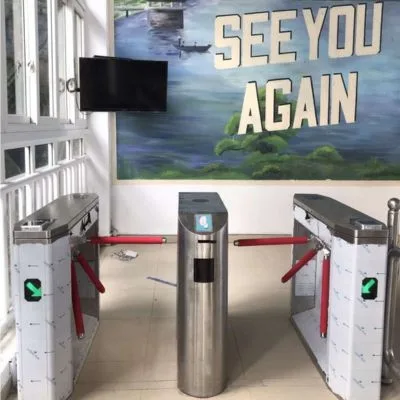

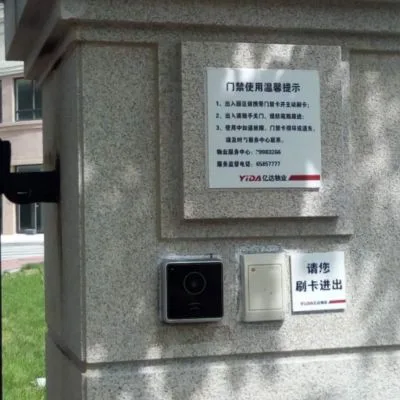

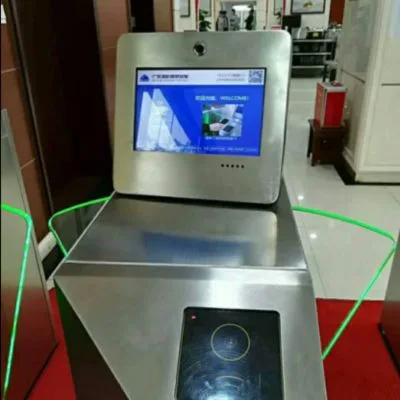

Application
