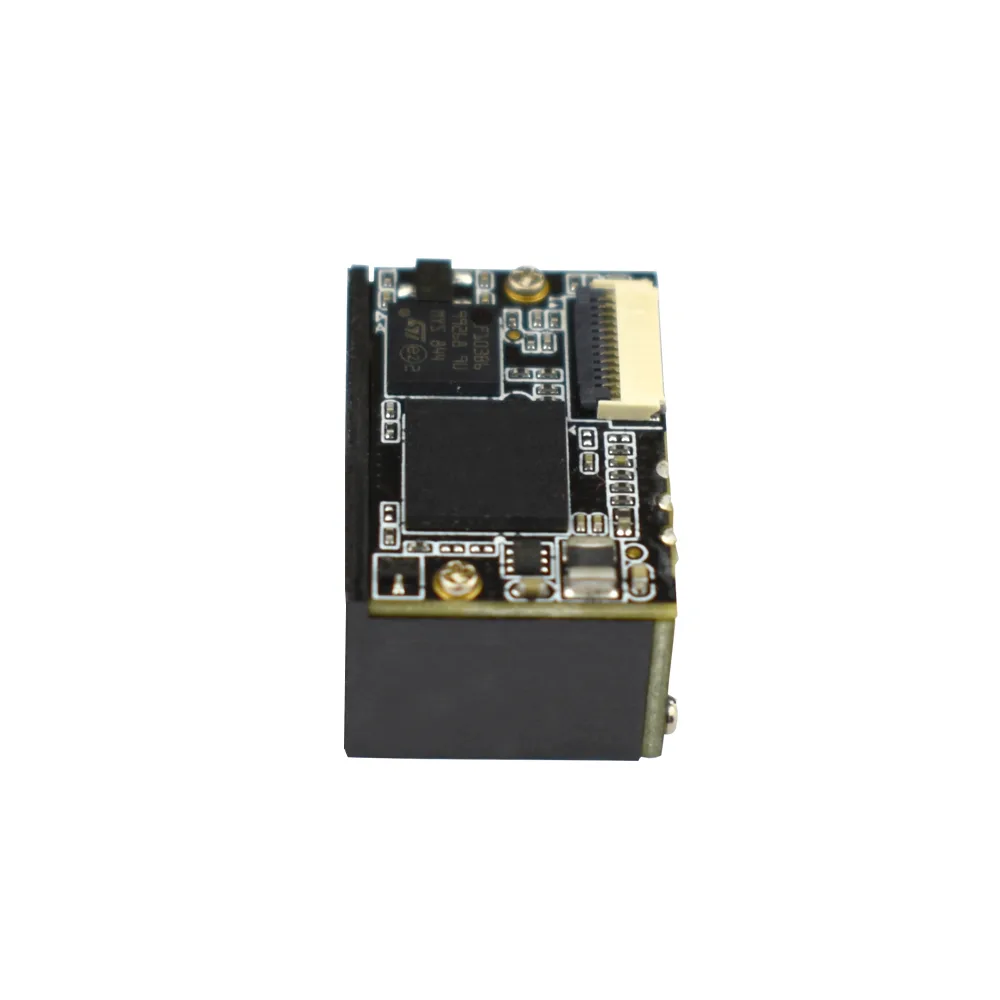

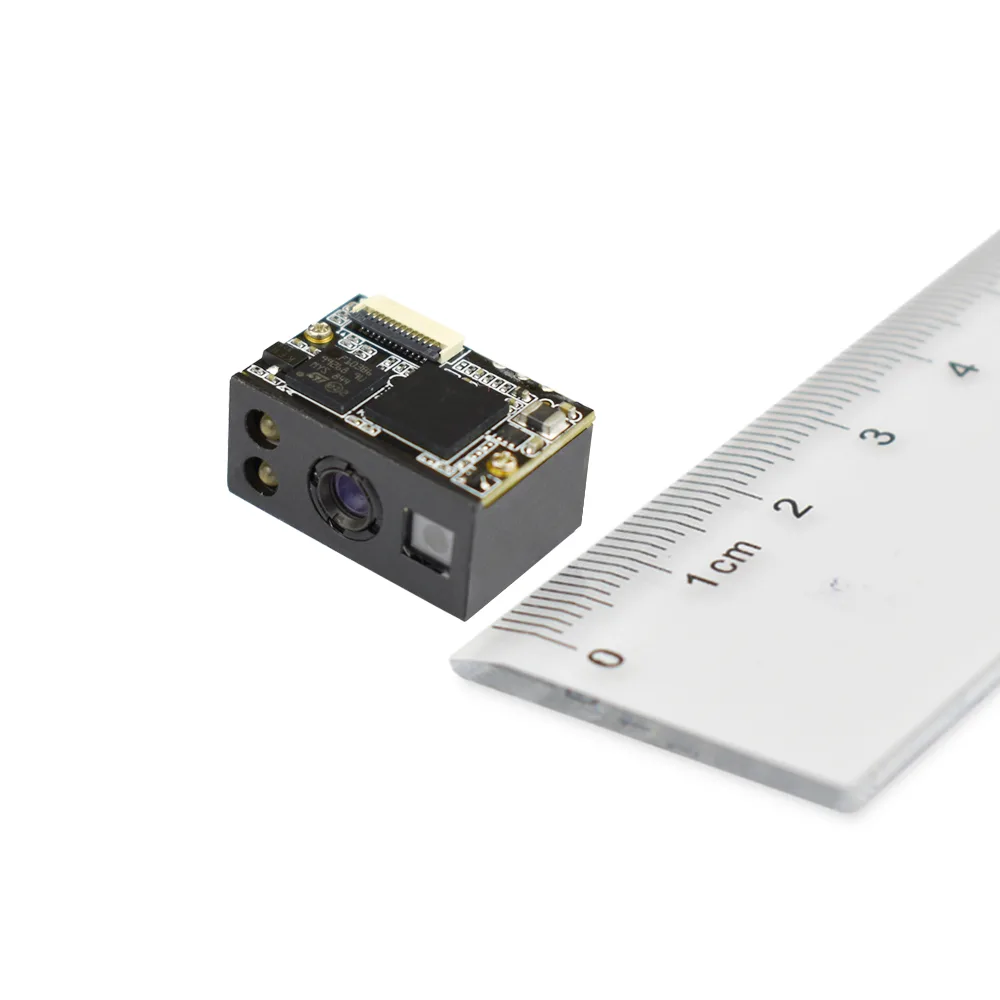

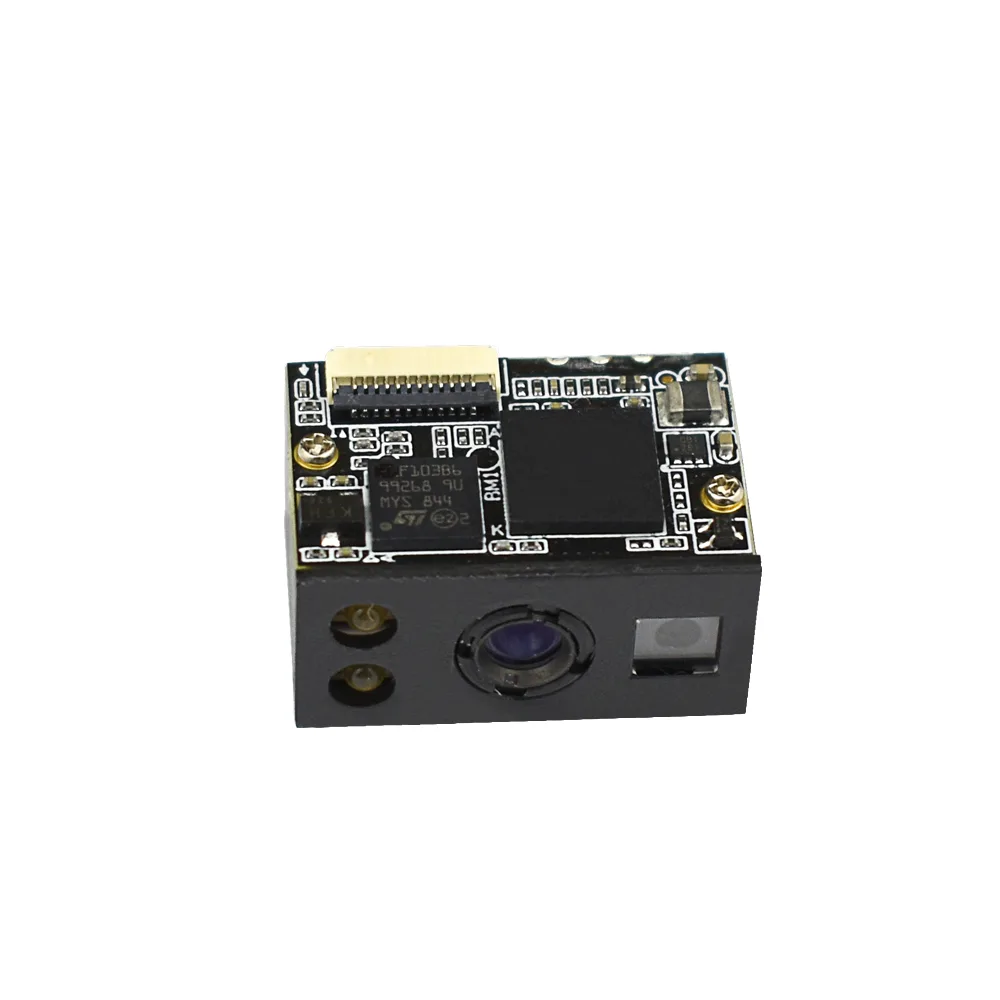

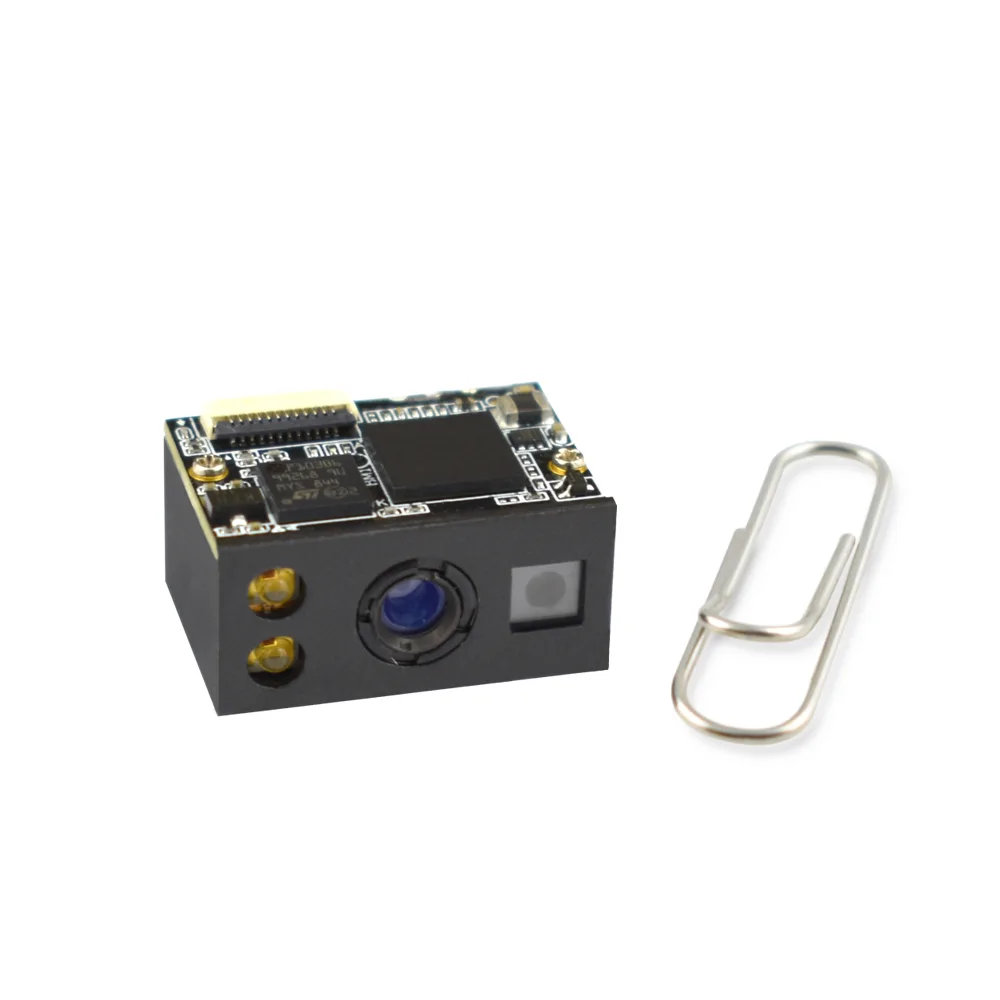

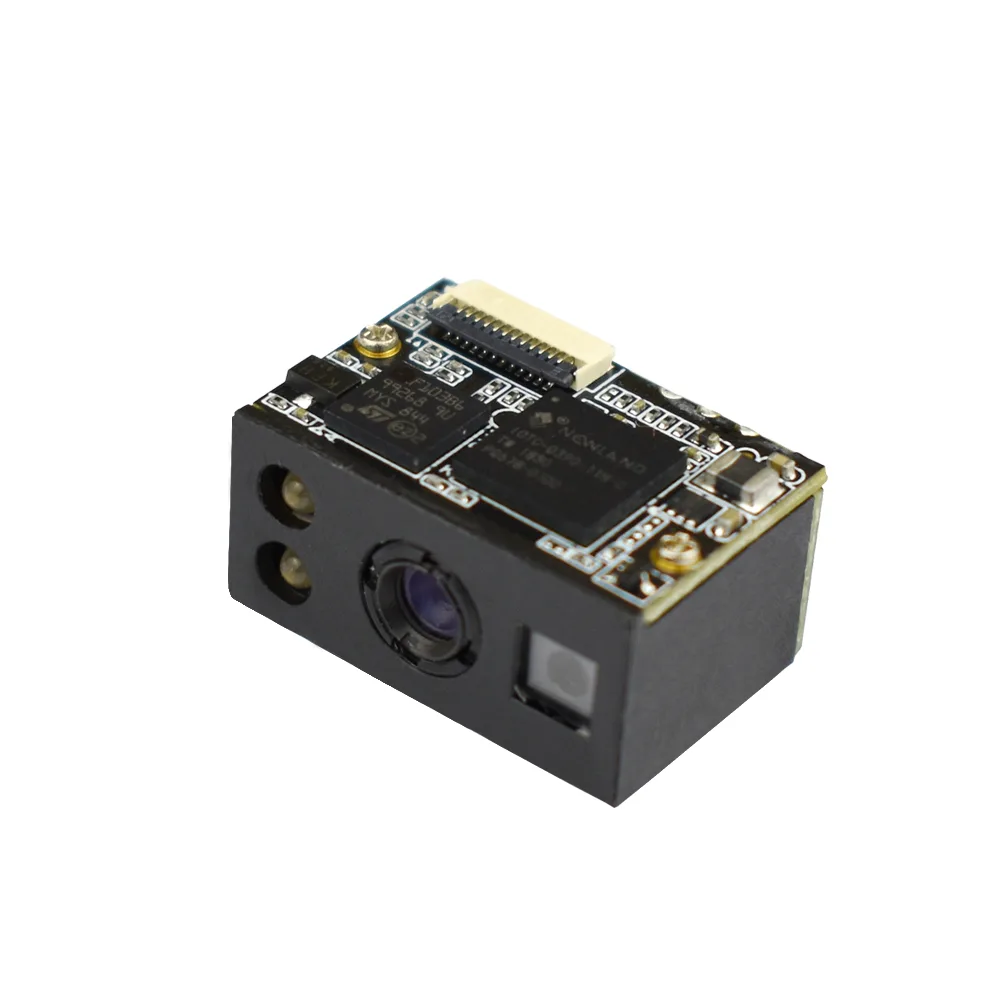

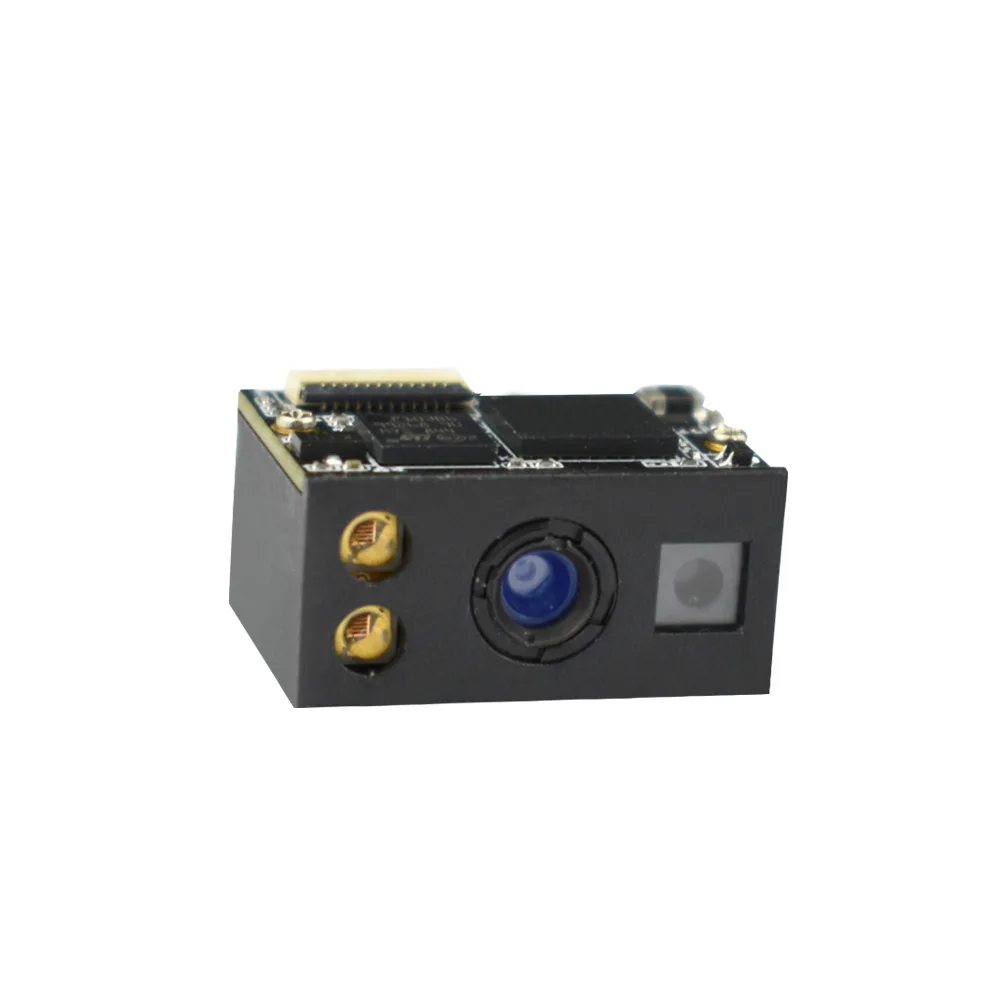

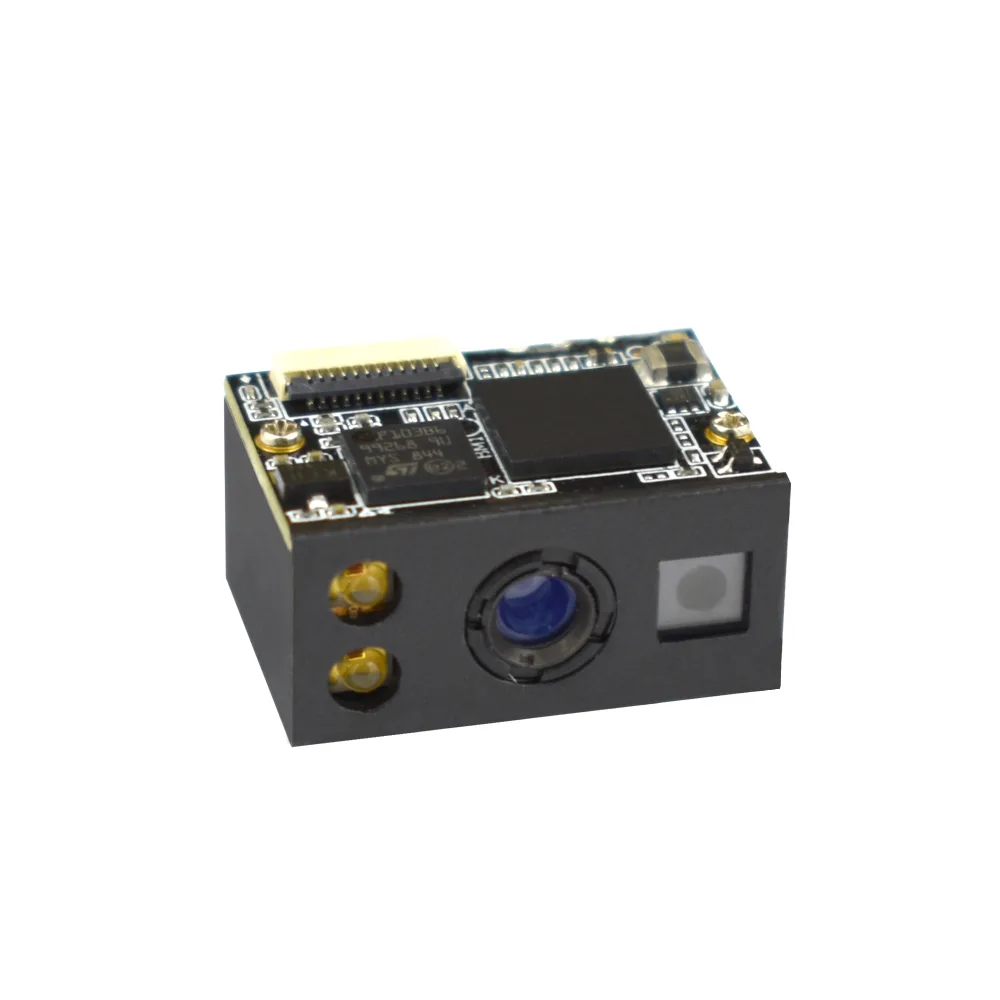

LV30 OEM Mini Barcode Scanner

Introduction

LV30 small size OEM barcode scan engine is a compact and powerful image-based 2D scanner module. With its high-resolution image sensor, easy integration, low power consumption features, LV30 is an ideal choice for traditional self-service devices, PDAs, tablets and other thin & light mobile devices.

Features

• High-Resolution Image Sensor: The LV30 scanner module boasts a 752*480 CMOS image sensor, which guarantees accurate and efficient barcode scanning.
• Easy Integration: The LV30 scanner module is designed for easy integration into existing systems. Its compact size and user-friendly design make it ideal to install and set up.
• Low Power Consumption: The LV30 is engineered to consume less power, making it an energy-efficient choice for your barcode scanning needs.
• ODM Service: We offer Original Design Manufacturing (ODM) services for the LV30 Mini based on a reasonable MOQ. This means we can customize the product to meet your specific requirements, ensuring a perfect fit for your application.

Specification

Performance	Image Sensor		752X480 CMOS
	Illumination		Red LED 625nm±10 nm
	Aiming		Laser 650nm
	Symbologies	2D	PDF417, Data Matrix (ECC200,ECC000,050,080,100,140), QR Code, Chinese Sensible Code
		1D	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
	Resolution*	N3mil
	Typical Depth of	EAN13(13mil)	60mm-290mm
	Field*	PDF417(6.7mil)	55mm-135mm
		Code39 (5mil)	55mm-165mm
		Data Matrix (10mil)	55mm-130mm
		QR Code(15mil)	45mm-175mm
	Symbol Contrast*	N20%
	Scan Angle**	Pitch: ±55°, Skew: ±55°, Roll: 360°
	Field of View	Horizontal: 36°, Vertical: 23°
Mechanical	Interface	TTL-232, USB
Electrical	Dimensions (mm）	21.5(D)x15.3(VV)x11.8(H)
	Weight	4.6 g
	Operating Voltage	3.3±10% VDC
	Rated Power Consumption	457mW (typical)
	Current @3.3 VDC	Operating	138mA (typical), 214mA (max)
		Standby	8.2mA
		Sleep	<100uA
Environmental	Operating	-20°C~+55°C
	Storage	-40°C~+70°C
	Humidity	5%~95% (non-condensing)
	Ambient Light	0-100000 lux (natual light)
Certifications	FCC Parti 5 Class B, CE EMC Class B
Accessories	EVK	Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
	Cable	USB	Used to connect the EVK to a host device.
		RS-232	Used to connect the EVK to a host device.
	Power Adaptor	DC5V power adaptor, used to provide power for the EVK.

Videos

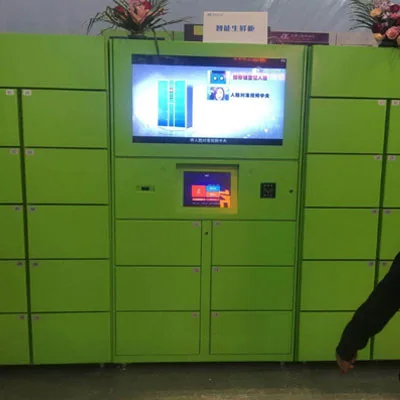

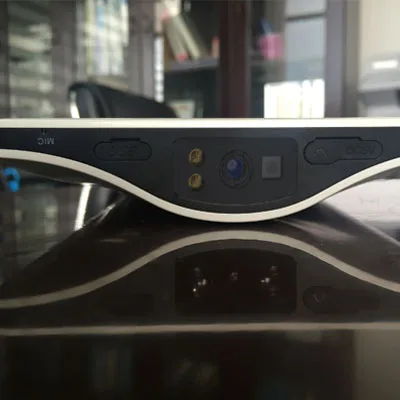

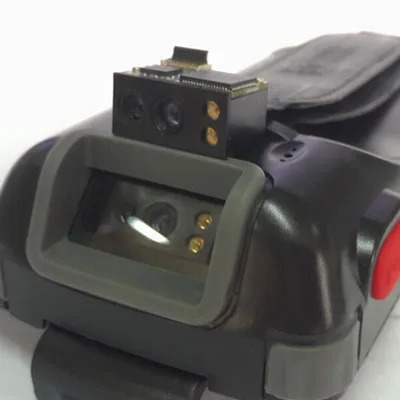

Application
