Industrial Barcode Scanner

Boost your industrial operations with the Industrial Barcode Scanner, engineered for rugged performance and high-speed accuracy. Rakinda scanner excels in harsh environments, offering reliable barcode reading in manufacturing, logistics, and warehousing applications. Key features include advanced decoding capabilities, DPM code reading, and a durable design that withstands extreme conditions. Its seamless integration into production lines and inventory management systems ensures precise data capture, reducing errors and enhancing productivity.

Comparison of Industrial Barcode Scanner

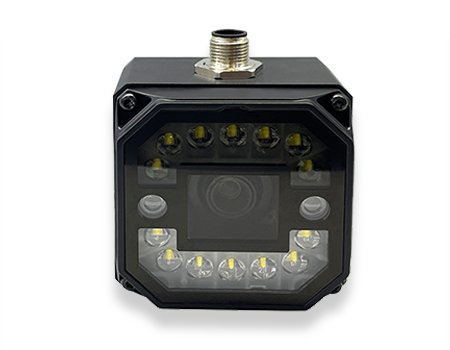

Model Name	RK4000	RK75	R1-1	R1-2
Image Sensor	1280 * 800 CMOS	1080 (H) * 1280(V)CMOS 1.3M High Performance Perceptron	1280 X 1024 CMOS 1.3M High Performance Perceptron	2368 × 1760 CMOS 1.4M High Performance Perceptron
Illumination	High brightness red light/High brightness white light	14 LEDs (4 up and down, 3 left and right), available in red and white colors	Spotlight white light	Spotlight white light
Aiming	Green LED aiming	Laser spot focus or cross focus	2 LED aiming lamps for easy installation and code aiming	2 LED aiming lamps for easy installation and code aiming
Max. Frame Rate	/	/	60 fps	30 fps
Max. Reading Speed	/	/	84 codes/sec	60 codes/sec
Sealing	IP65	IP65	IP67	IP67
Field of view	Horizontal 46° (H)，Vertical 29° (V)	Horizontal (H) 30°±1, Vertical (V) 33°±1 (The above specifications are based on M12-6mm lens)	R1-1-06W:Horizontal 44.1° (H)，Vertical 32.8° (V); R1-1-12W:Horizontal 22.9° (H)，Vertical 16.7° (V); R1-1-15W:Horizontal 18.6° (H)，Vertical 12.7° (V);	R1-2-08W:Horizontal 50.7° (H)，Vertical 38.8° (V); R1-2-12W:Horizontal 35° (H)，Vertical 26.4° (V); R1-2-15W:Horizontal 26.6° (H)，Vertical 20° (V);
Interface	RS232，USB (HID ; CDC)，Ethernet（TCP/UDP/Modbus）	RS232，USB (HID ; CDC) ，Ethernet（TCP/UDP/Modbus）	Smart SDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP	Smart SDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
1D	UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 ,Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C	UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 ,Code11 , Coda bar ,Plessey , MSI , Interleaved 2 of 5 ,IATA 2 of 5 , Matrix 2 of 5 ,Straight 2 of 5, Pharmacode ,RSS-14 , RSS-14 Expanded, RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C	Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, Code 11 and Industrial 25	Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, Code 11 and Industrial 25
2D	PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode	PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode	PDF 417, Data Matrix, QR Code	PDF 417, Data Matrix, QR Code
Resolution	RK4000-SR:1D : ≥4 mil ; 2D : ≥9 mil RK4000-HD:1D : ≥3 mil ; 2D : ≥7 mil	RK75-HD:1D ≧3 mil ; 2D ≧5 mil; RK75-SR:1D ≧3 mil ; 2D ≧5 mil; RK75-LR:1D ≧5 mil ; 2D ≧9 mil; RK75-DP:1D:≧3 mil ; 2D: ≥5 mil;	1D 3mil; 2D 5mil	1D 3mil; 2D 5mil
Operating Temperature	-20℃~+50℃	-10℃~+50℃	0℃~+50℃	0℃~+50℃
Storage Temperature	-40℃~+70℃	-40℃~+70℃	-30℃~+70℃	-30℃~+70℃
