Key Points
- Research suggests 1D barcode scanners read linear barcodes with limited data, while 2D scanners handle both 1D and 2D, storing more information.
- It seems likely 1D scanners are cheaper and faster for simple tasks, but 2D scanners offer flexibility for complex needs like healthcare and logistics.
- The evidence leans toward 2D scanners being more future-proof, given industry trends toward data-rich applications.
Introduction to Barcode Scanners
Barcode scanners are vital tools across industries, helping businesses track inventory, manage sales, and ensure accuracy in operations. They come in two main types: 1D and 2D, each suited to different needs based on data capacity and application.
Understanding 1D Barcode Scanners
1D barcode scanners, or linear scanners, read traditional barcodes like those on grocery items, using vertical lines and spaces. They come in laser-based (fast but needs clear barcodes) and image-based (better with damaged barcodes) types. They’re limited to about 25-100 characters of data and are commonly used in retail and logistics for basic identification.
Exploring 2D Barcode Scanners
2D barcode scanners read both 1D and 2D barcodes, like QR codes, using camera technology. They can store thousands of characters, making them ideal for applications needing more data, such as mobile payments or patient tracking in healthcare. They’re more flexible, handling damaged barcodes and various orientations.
Comparison and Choice
Comparing the two, 1D scanners are cost-effective for simple tasks, while 2D scanners offer higher data capacity and versatility, especially for future-proofing. Choose based on your industry’s data needs: retail might prefer 1D, while logistics may benefit from 2D’s capabilities.
Detailed Analysis and Findings
Barcode scanners are indispensable in modern business operations, facilitating efficient data capture in sectors like retail, logistics, healthcare, and manufacturing. The distinction between one-dimensional (1D) and two-dimensional (2D) barcode scanners is critical for optimizing operational efficiency, and this analysis aims to provide a comprehensive comparison to guide informed decision-making.
Defining 1D Barcode Scanners
1D barcode scanners, also referred to as linear scanners, are designed to read traditional barcodes that encode information through varying widths of vertical lines and spaces. These barcodes are ubiquitous, found on consumer goods, books, and shipping labels, and are typically associated with simple data encoding.
- Description and Types: 1D barcodes include formats like UPC (Universal Product Code) and Code 128. Scanners for these barcodes can be laser-based, which use a laser to reflect light off the barcode for decoding, offering high speed but requiring clear, properly oriented barcodes. Alternatively, image-based 1D scanners employ camera technology (CCD, similar to digital cameras) to capture and decode the barcode image, providing better tolerance for damaged or poorly printed barcodes.
- Capabilities and Limitations: Research indicates 1D scanners are limited to reading only 1D barcodes, with data capacity typically ranging from 25 to 100 characters, depending on the symbology (e.g., Code 128 can hold up to 100 characters, while UPC is limited to 12 digits). They are generally faster with laser models but may struggle with barcode quality issues, and their cost is lower compared to 2D scanners, making them economical for basic applications.
- Common Applications: 1D scanners are widely used in retail for point-of-sale systems, inventory management in warehouses, and ticketing systems, where simple product or item identification suffices. For instance, they are essential in grocery stores for scanning UPC codes at checkout.
Understanding 2D Barcode Scanners
2D barcode scanners are more versatile, capable of reading both 1D and 2D barcodes, which encode information in two dimensions, both horizontally and vertically. Examples include QR codes, Data Matrix, and PDF417, known for their high data density and compact size.
- Technology and Advantages: These scanners typically use camera-based technology, such as CMOS imaging, to capture the entire barcode image and decode it. This allows them to read barcodes from multiple angles and distances, with higher error tolerance for damaged or stained barcodes due to redundant data structures. They can store significantly more data, with QR codes holding up to 7,089 numeric or 4,296 alphanumeric characters, and Data Matrix up to 2,335 alphanumeric characters, as per industry standards.

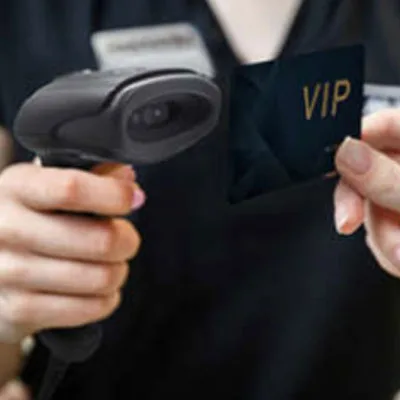

- Applications: 2D scanners are employed in scenarios requiring rich data, such as mobile marketing (linking to websites via QR codes), asset tracking in logistics, document management, and healthcare for patient identification and medication tracking. For example, in healthcare, they are used for scanning patient wristbands, as seen with products like the HPRT N130 handheld scanner.
Comparative Analysis
To facilitate a clear understanding, the following table summarizes the key differences based on recent research and industry insights:
| Feature | 1D Barcode Scanners | 2D Barcode Scanners |
|---|---|---|
| Dimensionality | 1-dimensional (linear) | 2-dimensional (matrix) |
| Data Capacity | Up to 25-100 characters, depending on type | Up to 7,089 numeric or 4,296 alphanumeric (QR); 2,335 alphanumeric (Data Matrix) |
| Scanning Technology | Laser (fast, needs clear barcodes) or CCD (image-based, better for damaged) | CMOS imaging (camera-based, handles complex barcodes) |
| Scanning Speed | Faster with laser models | Generally slower but more flexible |
| Error Tolerance | Lower, struggles with damaged barcodes | Higher, excels with worn or stained barcodes |
| Reading Distance | Typically 4 to 24 inches | Up to 550mm for high-end models (e.g., HPRT N160BT) |
| Cost | Lower, more cost-effective | Higher, due to advanced capabilities |
| Applications | Retail, logistics, inventory, ticketing | Retail (mobile payments), healthcare, logistics, manufacturing |
| Compatibility | Reads only 1D barcodes | Reads both 1D and 2D barcodes |
An additional table highlighting operational considerations:
| Factor | 1D Barcode Scanners | 2D Barcode Scanners |
|---|---|---|
| Scanning Range | Effective for paper-based 1D barcodes; limited to specific orientations | Recognizes barcodes on mobile/electronic screens; ideal for diverse environments, e.g., patient wristbands |
| Flexibility | Requires precise alignment; less adaptable to multi-barcode scanning | Scans from multiple angles; suitable for high-speed, dynamic environments |
| Database Dependency | Often requires database connectivity for meaningful data | Can function without database, storing rich data internally |
| Future-Proofing | Limited, as industries shift to data-rich 2D barcodes | Preferred for evolving needs, supporting industry trends toward complex data management |
Choosing the Right Scanner
Selecting between 1D and 2D barcode scanners depends on specific business needs and operational contexts. Key factors include:
- Type of Barcodes Used: If operations primarily involve 1D barcodes, such as in traditional retail, a 1D scanner may be sufficient. However, for businesses anticipating the use of 2D barcodes or needing flexibility, a 2D scanner is advisable, given its dual compatibility.
- Data Requirements: For applications requiring extensive data storage, such as tracking detailed inventory information or linking to digital content, 2D scanners are essential due to their higher capacity.
- Scanning Environment: In environments where barcodes may be damaged, poorly printed, or not perfectly aligned, 2D scanners’ higher error tolerance is advantageous, particularly in logistics and healthcare settings.
- Budget Considerations: 1D scanners are generally more cost-effective, making them suitable for small businesses with basic needs. However, for larger operations or those planning expansion, the investment in 2D scanners may be justified by long-term benefits.
- Future-Proofing: Industry trends indicate a shift toward 2D barcodes, especially in pharmaceuticals for anti-counterfeiting and logistics for comprehensive tracking. Investing in 2D scanners can future-proof operations, aligning with these developments.
Conclusion and Recommendations
In conclusion, while 1D barcode scanners are adequate for basic, cost-effective applications with limited data needs, 2D barcode scanners offer enhanced capabilities, flexibility, and data capacity, making them ideal for complex and data-intensive operations. Businesses should assess their current and future needs, considering factors like data volume, barcode types, and operational environment, to make an informed choice. For instance, retail might lean toward 1D for simplicity, while logistics and healthcare may benefit from 2D’s versatility, as evidenced by products like the HPRT N160BT, known for its 1.8m drop resistance and long-range scanning.
This analysis, conducted as of March 16, 2025, leverages recent industry insights to ensure relevance, and businesses are encouraged to consult manufacturer specifications and expert advice for tailored solutions.
